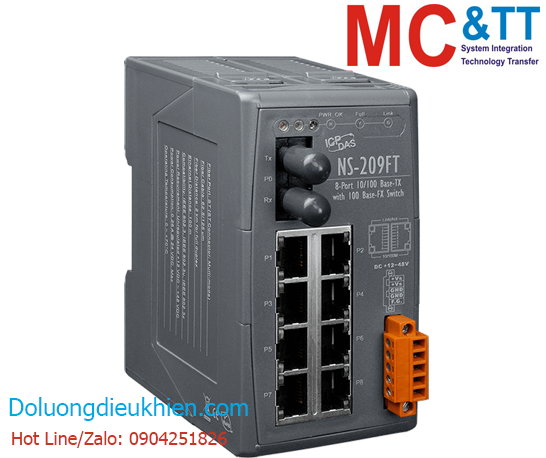

Miễn phí vận chuyển với đơn hàng từ 10.000.000đNS-209FT CR: Switch công nghiệp 8 cổng Ethernet + 1 cổng quang (2 sợi quang, Multi-mode, 2KM, ST)
Features
• Provides 1 x 100-FX fiber port plus 8 x Ethernet ports
• Each port supports both 10/100 Mbps speed auto negotiation
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• Automatic MDI/MDI-X crossover for plug-and-play
• Store-and-forward architecture
• Supports operating temperatures from -10 ~ +75 °C
• Multi-mode, ST Connector Fiber supports
Introduction
The NS-209FT is a 8-port unmanaged Ethernet with 1 fiber port switch. Using fiber optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 2 km) transmissions. The NS-209FT provides a wide 12 to 48 VDC power range to fit all the common power standards found in industrial automation, without external power converters. The wide power input lowers installation and maintenance costs.
Specification
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact |
| LED Indicators | |
|---|---|
| Status | Power, Link/Act, 10/100M, Full duplex/Half duplex (Fiber Port) |
| Ethernet | |
|---|---|
| Ports | 8 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x |
| Processing Type | Store & forward; wire speed switching |
| MAC Addresses | 2048 |
| Memory Bandwidth | 2.0 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| Fiber | |
|---|---|
| Ports | 1 x 100 Base-FX, ST connector |
| Mode | Multi-Mode |
| Fiber Cable | 50/125, 62.5/125 or 100/140 μm |
| Distance | 2 km, (62.5/125 μm recommended) for full duplex |
| Wavelength | 1300 or 1310nm |
| TX Output | -20 dBm Min. -14 dBm Max. |
| RX Sensitivity | -32 dBm |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +12 ~ +48 VDC |
| Consumption | 0.26 A @ 24 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 64 x 118 x 101 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environmental | |
|---|---|
| Operating Temperature | -10 °C ~ +75 °C |
| Storage Temperature | -20 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Download
Ordering information
| NS-209FT CR | Multi-mode, ST Connector, 8-port 10/100 Mbps with 1 fiber port Switch (RoHS) |
