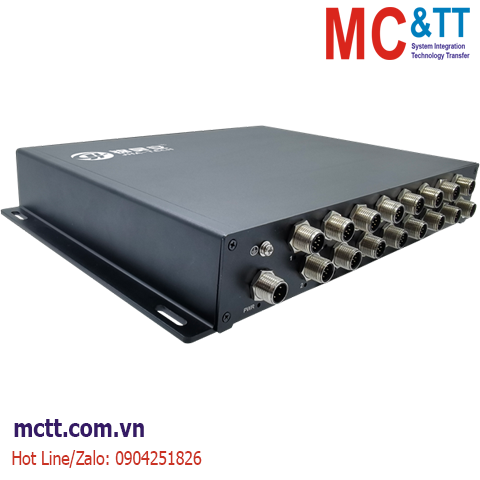

Miễn phí vận chuyển với đơn hàng từ 10.000.000đSwitch công nghiệp 16 cổng Gigabit Ethernet M12 JHA TECH JHA-IG016H-M12
Short Description:
16 10/100/1000TX M12 ethernet switch for transportation system
Product Overview
JHA-IG016H-M12 is a 16-port Gigabit unmanaged industrial-grade rail Ethernet switch, which meets the requirements of EN50155 and EN50121 industry standards, and the POE power supply complies with IEEE 802.3af/at protocol standards. The Ethernet interface adopts the solid and reliable M12 format, which can be applied to the use of severe vibration and shock scenes. The product provides Gigabit M12 interface (POE function is optional) and adopts wall-mounting installation method, which can meet the needs of different application sites. The hardware adopts fanless, low power consumption, wide temperature and voltage design, and passes the strict test in line with the industry standard, which can be widely used in vehicle PIS, CCTV, video surveillance, train control and other systems.
Features
*Support 16 10/100/1000Base-T(X) M12 Ethernet port.
*Support IEEE802.3, IEEE802.3u, IEEE802.3x.
*Supports PoE function, PoE supports IEEE802.3af and IEEE802.3at standards.
*Support redundant power input DC12～52V redundant input.
*Support wall mounting.
*Industrial grade 4 design, -40-85°C operating temperature.
*IP40 rated iron housing, Fanless design
*Conforms to EN50155 and EN50121 industry standards.
Specification
|
Protocol Standard |
I10Base-T, following IEEE 802.3 100Base-TX, following IEEE 802.3u 1000Base-T, following IEEE 802.3ab PoE, following IEEE 802.3af PoE+, following IEEE 802.3at |
|
Optional PoE |
Optional PoE PoE power supply pins: 1, 2 are negative; 3, 4 are positive |
|
Interface |
Gigabit M12: 10/100/1000Base-T(X), M12 (Female) Support POE function, single POE port supports 30W output power, POE total power support up to 240W |
|
Indicators |
Power indicator, interface connection indicator, interface activity indicator. |
|
Switching Properties |
Transmission method: store-and-forward MAC address: 16K Cache: 2Mbit Backplane bandwidth: 56G Switching Latency: <10μs |
|
Power |
Recommended 24VDC (12~52VDC), M12(Male) |
|
Power consumption |
No-load: 10.2W@24VDC Full load: 150.0W@24VDC |
|
Mechanical Structure |
Shell: IP40 protection;aluminum alloy shell Dimension: 292*205*45mm( L*W*H ) Weight: 1.6KG Installation: wakk-mounted installation |
|
Operating Environment |
Operating Temperature: -40~85°C Storage temperature: -40~85℃ Relative humidity: 5%~95% (no condensation) |
|
Industry Standards |
IEC 61000-4-2 (ESD, Electrostatic Discharge Immunity), Level 3 Air discharge: ±8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT, Electrical Fast Transient impulse group immunity), Level 3 Power supply: ±2kV Ethernet interface: ±1kV IEC 61000-4-5 (Surge, Surge Immunity), Level 3 Power: Common mode ±2kV, Differential mode ±1kV Shock: IEC 61373 Free fall: IEC 60068-2-32 Vibration: IEC 61373 |
|
Certification |
CE, FCC, RoHS |
|
Warranty |
5-years |
Dimension
Order Information
|
Model No. |
Description of Goods |
|
JHA-IG016H-M12
|
Unmanaged Industrial Ethernet Switch, 16 10/100/1000Base-T(X) M12 Ethernet Port, (POE function optional) D-Coding, 4 Pin Male Cable Connector,Wall Mount |
