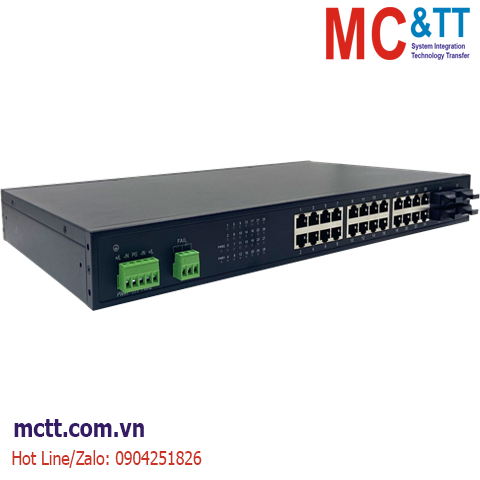

Power failure alarm unmanaged Industrial Ethernet Switch,4 1000Base-FX and 24 10/100Base-T(X), SC Connector, singlemode, Dual Fiber,20Km, AC220V, -40-85°C Operating Temperature,back side with LED panel
Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7
Khuyến mãi đặc biệt !!!
Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
Miễn phí vận chuyển với đơn hàng từ 10.000.000đSwitch công nghiệp 24 cổng Ethernet + 4 cổng Quang JHA TECH JHA-IGS04F024H-T
Short Description:
* Support 4 1000M FX Port and 24 10/100Base-T(X) Ethernet port；
*Power failure alarm function, ;
* DC12-60V/AC220V Optional；
* IP40 rated aluminum alloy housing, 1U Rack Mount Chassic Type；
*Static 8kv and network port 4kv lightning surge.
Product Overview
JHA-IG04F024H-T is a plug-and-play unmanaged industrial Ethernet switch, which can provide economical solution for your Ethernet. Its dust-proof fully sealed structure(IP40 protection grade), over-current, over-voltage and EMC protected, redundant double power input as well as built-in intelligent alarm design can help system main tenancy personnel monitor the network operation, which can work reliably in harsh and dangerous environment.
JHA-IGS04F024H-T support 4 1000Base-FX Port and 24 10/100Base-T(X) Ethernet port. It support CE, FCC, RoHS standard, rugged high-strength metal case, power input (DC10-58V/AC100-240V). The switch support IEEE802.3, IEEE802.3u, IEEE802.3x with 10/100Base-T(X), full/half-duplex, and MDI/MDI-X auto-adaptation, the -40-85℃ operating temperature can meet all kinds of industrial environment requirement, providing reliable and economic solution for your industrial Ethernet network
Features
Specification
|
Protocol Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
|
Flow Control |
IEEE802.3x flow control, back press flow control |
|
Switching Performance |
Transmission Mode: Store and Forward Packet Forwarding Rate: 9.52Mpps Backplane Bandwidth: 12.8Gbps MAC Table Size: 8K Delay Time: < 10μs |
|
Ethernet Port |
10/100Base-T(X) auto speed control, full/half duplex and MDI/MDI-X auto-adaptation |
|
Fiber Port |
100Base/1000Base-X SFP Slot |
|
LED Indicator |
Power indicator: PWR (green); Optical port: FX (green); Network port indicator: yellow(100 or POE) Green (Link) |
|
Power Supply |
Input Voltage: DC12-60V/AC 100-240V 50-60HZ Connector: 5P Phoenix terminal, dual power supply redundancy Non PoE Full Load: <10W Protection Mechanism: overload protection, reverse connection protection, redundancy protection |
|
Mechanical Structure |
Shell: IP40 protection; Iron housing; Fanless design; Natural heat dissipation Dimension: 440*250*44.5mm( L*W*H ) Weight: <3KG Installation: Rack-mounted installation |
|
Operating Environment |
Operating Temperature: -40-85°C Storage Temperature: -40-85°C Ambient Relative Humidity: 5%-95% (non-condensing) |
|
Power Down Alarm |
Yes |
|
Industry Standards |
IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us) IEC 61000-4-3 Level 3 (10V/m) IEC 61000-4-4 Level 3 (1V/2V) IEC 61000-4-6 Level 3 (10V/m) IEC 61000-4-8 Level4 (30A/m) IEC 61000-4-11 Level3 (10V) EMI CLASS A IEC 61000-4-2 Level 4 (15KV/30KV) Free fall 0.5m |
|
Certification |
CE, FCC, RoHS |
|
MTBF |
>100,000 Hours |
Dimension
Order Information
|
Model No. |
Description of Goods |
|
JHA-IGS04F024H-T |
Unmanaged Industrial Ethernet Switch,4 1000Base-X Slot and 24 10/100Base-T(X), Rack-mounted installation, DC12-60V/AC100-240V, -40-85°C Operating Temperature |
|
Fiber Connector: SC/ST/FC/LC(SFP Slot), Single Mode/Multimode, Dual Fiber/Single Fiber, 2Km/20Km/40Km/60Km/80Km/100Km/120Km is Optional. |
|
