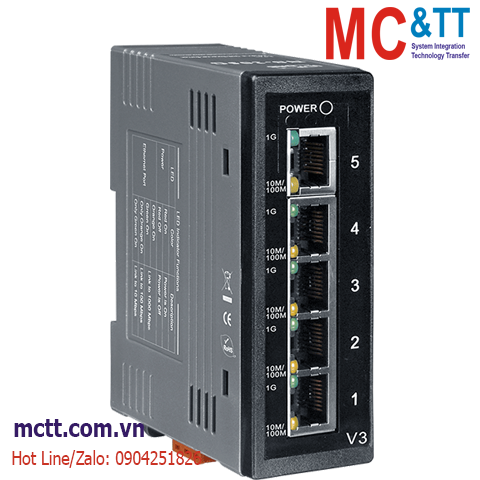

Miễn phí vận chuyển với đơn hàng từ 10.000.000đSwitch công nghiệp 5 cổng Gigabit Ethernet ICP DAS NS-205G CR
Feature
• Automatic MDI/MDI-X crossover for plug-and-play
• Each port supports 10/100 and 1000 Mbps speed auto negotiation
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• Supports +10 ~ +30 VDC power input
• Store-and-forward architecture
Introduction
The NS-205G is 5-port unmanaged gigabit switches that support 10/100/1000 Base-T, with a 10/100/1000M auto negotiation feature and auto MDI/MDI-X function. It can connect 5 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps or 1000 Mbps) for corresponding connections.
That is an ideal solution for bandwidth-hungry applications (such as high resolution digital image transmission, video/audio file streaming/downloading, and server farm connectivity).
The flow control mechanism is also negotiated. There is link/data rate LEDs for each port to aid troubleshooting.
Application
Specifications
| LED Indicators | |
|---|---|
| Status | Power, 1000M, Link/Act |
| Ethernet | |
|---|---|
| Ports | 5 x RJ-45, 10/100/1000 Base-T |
| Standards | IEEE 802.3, 802.3u, 802.3ab and 802.3x |
| Processing Type | Store & forward |
| MAC Table | 4096 |
| Frame Buffer Memory | 1.5 Mbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Jumbo Frames | 9 K for Speed 1000 M |
| Isolation | 1500 Vrms 1 minute |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC (Non-isolated) |
| Consumption | 0.2 A @ 24 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 x 107 x 78 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Download
Ordering Information
| NS-205G CR | Unmanaged 5-port Industrial 10/100/1000 Base-T Ethernet Switch (RoHS) |
