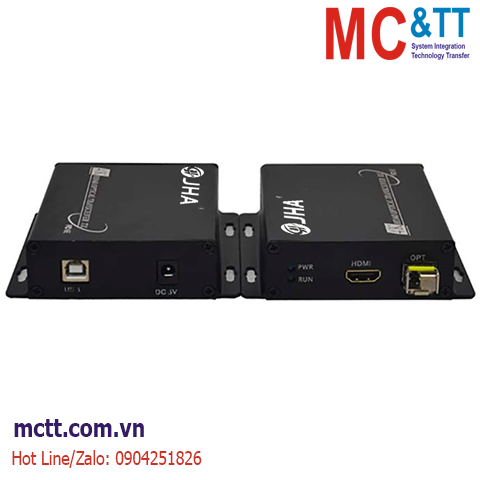

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ chuyển đổi 1 kênh 4K HDMI sang quang JHA-H4K110
Short Description
The 4K hdmi optical fiber transmitter and receiver, also known as the 4K HDMI over fiber extender or 4k hdmi fiber video converter.
Product Description
The 4K hdmi optical fiber transmitter and receiver, also known as the 4K HDMI over fiber extender or 4k hdmi fiber video converter, which consists of an HDMI fiber transmitter and receiver that transmits an uncompressed 10G 4K x 2K 30Hz HDMI signal and standard rs232 data to 10-40KM via a single-mode fiber-optic cable. It is an equipment to reach HDMI signal transparent transmission without delay.
Features：
• 10G fiber optic transmission , uncompressed real transparent transmission without delay.
• Support HDMI 1.4 and 3D video signal transmission, support 720p / 60Hz, 1080i / 60Hz, 1080p / 30Hz, 1080p / 60Hz, 1080p / 120Hz, etc., the maximum resolution: 4096 × 2160 30HZ
• Max extension distance 300M(OM3 MM fiber)/10KM(SM fiber)
• Supports 1080p resolution with color depth up to 16 bits/pixel
• Supports 4K HDMI bit-rates up to 3.4 Gbps/color,10.2 Gbps total
• With reverse EDID , support HDCP content protection.
• Support 1ch standard RS232;
• Compatible with DVI signal transmission, support HDMI interface hot plug, low power consumption, plug and play, strong compatibility
• The aluminum alloy casing is suitable for industrial harsh environments;
Thông số kỹ thuật
|
Video |
Compliance |
DVI v1.0, HDMI v1.4, HDCP v1.4 |
|
Maximum Pixel Clock Frequency |
Supports pixel clock rates up to 340 MHz |
|
|
Maximum Video Bit Rate |
Supports digital signal bit rates up to 3.4 Gbps per color |
|
|
Supported Color Depth |
Supports 1080p resolution with up to 16 bits/pixel |
|
|
Digital Audio Support |
Dolby Digital, Dolby Digital Plus, Dolby True HD and DTS-HD Master Audio |
|
|
Supported HDTV Formats |
Supports all HDTV resolutions including 1080p, 2K and 4K (UHD) formats |
|
|
Supported PC Resolutions |
Supports resolutions up to 4096×2160 / 24p, 30p |
|
|
HDMI Input / HDMI Output |
19-pin female HDMI connectors |
|
|
Optical Input / Output |
2x female LC optical connectors |
|
|
Construction |
Extruded Aluminum enclosure with black anodized finish |
|
|
Optic |
Optical Transmitter |
Laser Source: 850nm VCSEL/ 1310nm DFB / 1550nm DFB |
|
Optical Receiver |
PIN Photo Diode O/E Converter |
|
|
Fiber Cable Type / Max. Length |
50/125μ OM3 MM fiber/ 300 meters |
|
|
9/125μ SM optical fiber / 10KM~40Km |
||
|
Data |
Data Protocol |
RS232/RS485 |
|
Data Rate |
0~384 Kbps |
|
|
Error Rate |
< 10-9 |
|
|
Connector |
Standard Terminal Block |
|
|
General |
Dimensions |
104 mm x 104 mm x 28 mm |
|
Package Size |
60x30x12.5cm |
|
|
material |
Aluminum |
|
|
colour |
Black |
|
|
Weight |
700g per pair |
|
|
Operating Temperature |
0° to +50° C |
|
|
Storage Temperature |
-20° to +70° C |
|
|
Humidity (storage / operating) |
10% to 90% (non-condensing) |
|
|
Power Supply |
DC5V2A |
|
|
Maximum Power Consumption |
TX Unit: 3.5 watts RX Unit: 3.5 watts |
|
|
MTBF |
>30000hour |
| Interface | Transmitter and Receiver |
| HDMI_IN | HDMI signal input port |
| HDMI_OUT | HDMI signal output port |
| OPT | Fiber input port |
| DC-5V | 5V Power port |
| R T G | RS232 port R(receive) T(transmit) G(ground) |
| Indicator Light | HDMI Transmitter | HDMI receiver |
| RUN | On | Video signal on |
| Off | No Video Signal | |
| PWR | On | Power on |
| Off | Power off |
Thông tin đặt hàng
|
Model No. |
Description of Goods |
|
JHA-H4K1101 |
1CH 4K HD Video+1 BIDI RS232 |
|
JHA-H4K110U |
1CH 4K HD Video+1 USB1.0 KVM Port |
