1-port 100Base-FX +1-port 10/100Base-T(X) , Single Mode Dual Fiber,20km, PoE Optional
Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7
Khuyến mãi đặc biệt !!!
Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ chuyển đổi quang điện IP66 1 cổng Ethernet + 1 Quang (Dual Fiber, Single Mode, 20KM) JHA TECH JHA-EXIF11M-20
Introduction

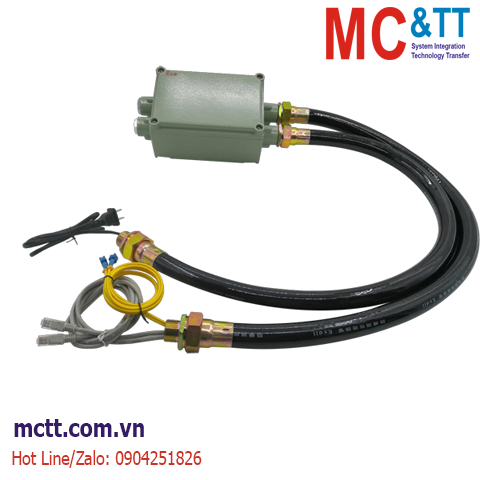

Explosion-proof fiber media converter with various varieties. 10/100M, 10/100/1000M, Single fiber, Dual fiber, POE function and other options. The product adopts fanless, low power consumption design, dust-proof and explosion-proof protection level, the working performance is more stable . The product meets explosion-proof standards GB3836.1-2000, GB3836.2－2000, GB 12476.1-2000, Wide Operating Temperature: -45℃~85℃, which can adapt to harsh working conditions, can customized as customers requirements.
Workplace:
It is suitable for the zone 1 and zone 2 where the factory has IIA, IIB, and explosive mixtures of T1 ～ T6 flammable gas, vapour and air, and the zone 21 and zone 22 explosion hazards formed by combustible dust and air. Such as petroleum, chemical industry, docks, urban corridors, oil depots, ships, drilling platforms, gas stations, mines, ports, aerospace, military industries, medicine, steel, fireworks production, machinery, food processing and storage and other places.
Features
Dimension
Specification
| Model No. | JHA-Ex Series |
| Certifications | |
| Explosion-proof Standard | Ex de ⅡB T6Gb |
| Explosion-proof certificate number | CNEx19.2768X |
| Parameters | |
| Material | Aluminum Alloy |
| Surface treatment | High-temperature spray paint |
| Protection grade | IP66 |
| Anticorrosive grade | WF1 |
| Proper temperature | T1～T6 |
| Product Size | 200mm*135mm*90mm |
| Interface specifications | G-3/4″ （or NPT3/4）internal thread |
| Ports | 4 |
| Weight | ≥2.0kg |
| Voltage | AC220V DC10-58V |
| Power | 2A |
| Installation method | Wall-mount |
Order Information
|
Model Number |
Product Descriptions |
|
JHA-EXIF11M-M |
1-port 100Base-FX +1-port 10/100Base-T(X) , Multimode Dual Fiber,20km, PoE Optional |
|
JHA-EXIF11M-20 |
1-port 100Base-FX +1-port 10/100Base-T(X) , Single Mode Dual Fiber,20km, PoE Optional |
|
JHA-EXIF11WM-20 |
1-port 100Base-FX +1-port 10/100Base-T(X) , Single Mode Single Fiber,20km, PoE Optional |
|
JHA-EXIG11M-M |
1-port 1000Base-FX +1-port 10/100/100Base-T(X) , Multimode Dual Fiber,550m, PoE Optional |
|
JHA-EXIG11M-20 |
1-port 1000Base-FX +1-port 10/100/100Base-T(X) , Single mode Dual Fiber,20km, PoE Optional |
|
JHA-EXIG11WM-20 |
1-port 1000Base-FX +1-port 10/100/100Base-T(X) , Single mode Single Fiber,20km, PoE Optional |
