Miễn phí vận chuyển với đơn hàng từ 10.000.000đKhung giá 2U 14 khe cắm bộ chuyển đổi quang điện JHA TECH JHA-E14-2D
Introduction

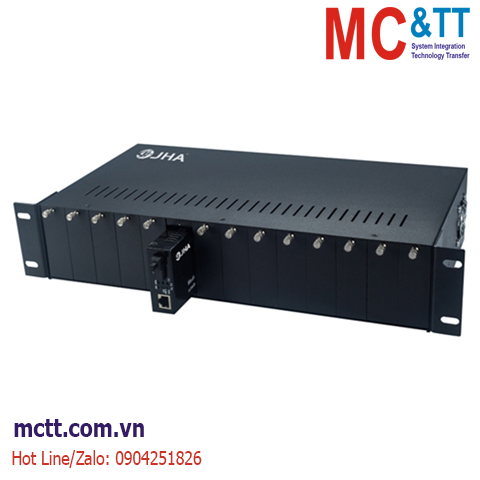

JHA-E14 is a 14-slot 19″ Rack-Mount Chassis System provides housing for up to 14 JHA series media converters. Designed for continuous operation, the chassis is equipped with dual cooling fans and redundant power supplies (optional). Its Plug-and-Play and Hot-Swap features allow installing/removing the converter unit without powering off the chassis. JHA-E14 rack-mount chassis eliminates the external power adapters for JHA series media converters and organizes multiple converters in a single unit, which makes it the perfect solution for managing multiple JHA series converters.
Features
Provides housing for up to 14 JHA series media converters.
nSupport AC220V and DC48V two power supply, suitable for a variety of work environments.
nEach card modules are hot swappable.
nModular power supply design, easy maintenance, better shielding, preventing the normal operation of the power generated electromagnetic signal interference module group.
nStandard chassis can be installed in the engine room rack, easy to managed.
nSimultaneously inserted 14 fiber optic transceivers, each of the transceiver module can be different of rates.
nPower protection: Overvoltage protection, overcurrent protection, short circuit protection.
nAll-aluminum design, sophisticated appearance, good ventilation lightweight thermal design to ensure normal and stable operation of the system.
Dimension
Specification
|
Slots Provided |
14 Slots |
|
Structure |
2 U Rack mounted |
|
Power Input |
AC 85~265V 50/60Hz |
|
Power Output |
DC 5V 1A |
|
Power Configuration |
Redundant Power Supply |
|
LED Indication |
Power |
|
Max Power Consumption |
95W |
|
Operating Temperature |
-20~70℃ |
|
Working Humidity |
5%~90% |
|
Storage Temperature |
-40~70℃ |
|
Storage Humidity |
5% to 90% Non-Condensing |
|
Dimensions |
483*232*90mm(L*W*H) |
|
Certification |
CE, FCC, RoHS |
|
Warranty |
3-years |
Order Information
|
Model No. |
Description of Goods |
|
JHA-E14-2A |
14 Slots 2U Rack Mount Chassis for Standalone Media Converter, Dual Power, AC110-240V |
|
JHA-E14-2D |
14 Slots 2U Rack Mount Chassis for Standalone Media Converter, Dual Power, DC48V |
