Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ mở rộng 1 kênh 4K HDMI qua Ethernet CAT6 Compact 4K HDMI
Short Description
Compact 4K HDMI Extender over Ethernet Without Delay
Product Description

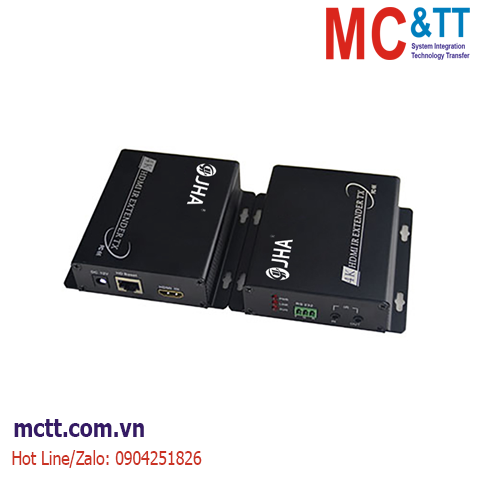

The 4K hdmi over cat5 consists of a transmitter and a receiver that transmits high-definition audio and video over a local area network using standard TCP/IP protocols. The transmitter and the receiver are connected by a single network cable, which extends the HDMI signal to 150 meters, is compatible with CAT5/5e/6 type cable, and can also realize one-to-many broadcast transmission through a ethernet switch. In addition, it also supports two-way audio, network cable adaptation, automatic adjustment of resolution output, the best display effect, simpler and more convenient. This product is suitable for video conferencing, HD video capture, multimedia education, digital advertising and signage.
Features：
• The 4K hdmi over cat5 for 1port 4K HDMI,rs232 and infrared signals over CAT5/5E/CAT6 cable;
• Support HDMI 1.3/HDCP1.1 & 1.2 version;
• Support point-to-point, point-to-multipoint and cascade transmission;
• Support international IEEE802.3 Ethernet standard;
• 0~150m long distance transmission;
• No software settings, support hot plug;
Thông số kỹ thuật
|
Video |
HDMI Version | HDMI 1.3/HDCP1.1 & 1.2 |
| Number of Channels | 1Channel | |
| HDMI Transmitter Input/ Output Port | HDMI Female port/1 x CAT5/5E/CAT6 | |
| Video Format | 800×600 60HZ;1024×768 60HZ; 1280×720 60H;1280×800 60HZ; 1280×1024 60HZ;1360×768 60HZ; 1440×900 60HZ;1600×1200 60HZ; 1680×1050 60HZ;1920×1080 60HZ; | |
| Video Direction | Unidirectional | |
|
Data |
Data Protocol | RS232 |
| Data Rate | 0~115.2 Kbps | |
| Error Rate | < 10-9 | |
| Connector | Standard Terminal Block | |
|
Ethernet |
Connector | RJ45 |
| Transmission Distance | 0~150meters | |
| Data Rate | 10/100Mbps(AUTO) | |
|
General |
Power | DC5V1A |
| Power Consumption | ≤5W | |
| Working Temperature | -15ºC ~55ºC | |
| Storage Temperature | -30ºC ~70ºC | |
| Net Weight (pair) | 0.4Kg | |
| Gross Weight(pair) | 0.7Kg | |
| Dimension of Transmitter/Receiver | 105mm×102mm×28mm | |
| Package size | 21.5×16×7cm | |
| Installation | Desktop/Wall mount | |
| MTBF | ≥ 100000Hours |
LED Indicator:
| Interface | Transmitter and Receiver |
| HDMI_IN | HDMI signal input port |
| Link | Ethernet port |
| DC-5V | 5V Power port |
| R T G | RS232 port R(receive) T(transmit) G(ground) |
| Indicator Light | HDMI Transmitter | HDMI receiver |
| Link | On | Ethernet on |
| Off | No ethernet signal | |
| Run | On | HDMI signal on |
| Off | No HDMI Signal | |
| Power | On | Power on |
| Off | Power off |
