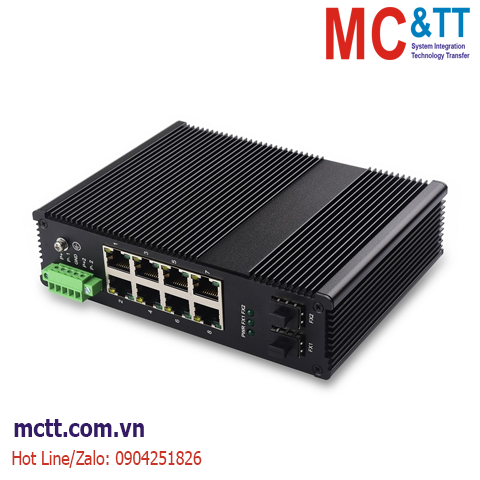

Web Managment Industrial Ethernet Switch, 2 1000Base-X SFP Slot and 8 10/100/1000Base-T(X),, DIN-Rail, DC10-55V, -40-85°C Operating Temperature
Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7
Khuyến mãi đặc biệt !!!
Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
Miễn phí vận chuyển với đơn hàng từ 10.000.000đSwitch công nghiệp 8 cổng Gigabit Ethernet + 2 cổng Quang 1G SFP JHA TECH JHA-MIGS28H-WEB
Short Description:
* Support 2 1G SFP Slot and 8 10/100/1000Base-T(X) PoE Ports；
* Web Smart Function;
* DC48-55V;
* IP40 rated aluminum alloy housing, ；
* 5-year warranty.
* Support VLAN, Qos,IGMP,Trunk Group Setting,Loop Prevention, RSTP global, Port-based Mirroring,SNMP；
Product Overview
JHA-MIGS28H-WEB is a smart Web managed industrial Ethernet switch, which can provide economical solution for your Ethernet. Its dust-proof fully sealed structure(IP40 protection grade), over-current, over-voltage and EMC protected, redundant double power input as well as built-in intelligent alarm design can help system main tenancy personnel monitor the network operation, which can work reliably in harsh and dangerous environment.
JHA-MIGS28HP-WEB support 2 1000Base-X SFP fiber port and 8 10/100/1000Base-T(X) Ethernet port. It support CE, FCC, RoHS standard, rugged high-strength metal case, power input (DC10-55V). The switch support IEEE802.3, IEEE802.3u, IEEE802.3x with 10/100Base-T(X), full/half-duplex, and MDI/MDI-X auto-adaptation, the -40-85℃ operating temperature can meet all kinds of industrial environment requirement, providing reliable and economic solution for your industrial Ethernet network.
Features
*Support 2 1000Base-X SFP Port and 810/100/1000Base-T(X) Ethernet port.
*Support IEEE802.3, IEEE802.3u, IEEE802.3x.
*Plug-and-play,10/100/1000Base-T(X), full/half duplex, MDI/MDI-X auto-adaptation.
*Industrial chip design, 15kV ESD protection, 8kV suge protection.
*DC10-55V redundancy power, reverse polarity protection.
*Industrial grade 4 design, -40-85°C operating temperature.
*IP40 rated aluminum alloy housing, DIN-Rail mounted.
Specification
|
Fixed port |
8 10 / 100 / 10000base TX RJ45 ports (data) 2 x 1000m SFP 1 reset* restore factory configuration button |
|
Port characteristics |
10 / 100 / 1000baset (x) automatic detection, full / half duplex MDI / mdi-x adaptive |
|
Function switch |
DUMP： Common network sharing WEB: SMART WEB management |
|
Forwarding mode |
Store and forward (full line speed) |
|
backplane bandwidth |
20Gbps （No blocking） |
|
Packet forwarding rate |
14.88Mpps |
|
MAC address |
Support 4K |
|
Cache |
32K |
|
Network protocol |
IEEE 802.3,802.3i,802.3u,802.3x,802.3ab,802.3z |
|
Twisted pair transmission |
10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(150 meter) 1000BASE-TX ： Cat6 or later UTP(150 meter) |
|
LED indicator |
Power: power indicator 5 6: (optical port connection indicator) 1-8Port: (Gree:Link ; Orange:1000M Speed) |
|
Overall power consumption |
Full load maximum 5W |
|
Supporting power supply |
DC10-55V/AC 100-240V 50-60HZ |
|
Operating temperature / humidity |
-40～+85°C；5%～90% RH No condensation |
|
Storage temperature / humidity |
-40～+85°C；5%～95% RH No condensation |
|
Product size |
158*118*42mm |
|
Net weight |
1kg |
|
Installation mode |
Desktop type (optional with wall hanging + rack lug accessories) |
|
Lightning protection / protection grade |
Port lightning protection: 3KV 8 / 20us; Protection grade: IP40 |
|
PoE Support(Optional) |
PoE ports:1-4 |
|
PoE protocol:802.3af, 802.3at |
|
|
PoE pin assignment:1,2,3,6 |
|
|
PoE Power:DC48-55V |
|
|
Safety certification |
IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us) IEC 61000-4-3 Level 3 (10V/m) IEC 61000-4-2 Level 4 (15KV/30KV) IEC 61000-4-4 Level 3 (1V/2V) IEC 61000-4-6 Level 3 (10V/m) IEC 61000-4-8 Level4 (30A/m) IEC 61000-4-11 Level3 (10V) EMI CLASS A Free fall 0.5mCE mark, commercial；CE/LVD EN60950； FCC Part 15 Class B；RoHS； |
|
Warranty period |
Complete machine 5 year (excluding accessories) |
Dimension
Order Information
|
Model No. |
Description of Goods |
|
JHA-MIGS28H-WEB |
Web Managment Industrial Ethernet Switch, 2 1000Base-X SFP Slot and 8 10/100/1000Base-T(X),, DIN-Rail, DC10-55V, -40-85°C Operating Temperature |
|
JHA-MIGS28HP-WEB |
Web Managment Industrial PoE Switch, 2 1000Base-X SFP Slot and 8 10/100/1000Base-T(X) PoE/PoE+and, DIN-Rail, DC48-58V, -40-85°C Operating Temperature |
|
Fiber Connector: SC/ST/FC/LC(SFP Slot), Single Mode/Multimode, Dual Fiber/Single Fiber, 2Km/20Km/40Km/60Km/80Km/100Km/120Km is Optional. Power Supply: DC24V DIN-Rail Power Supply or Power Adapter is Optional. DC48V DIN-Rail Power Supply or Power Adapter is Optional(for PoE switch) |
|
