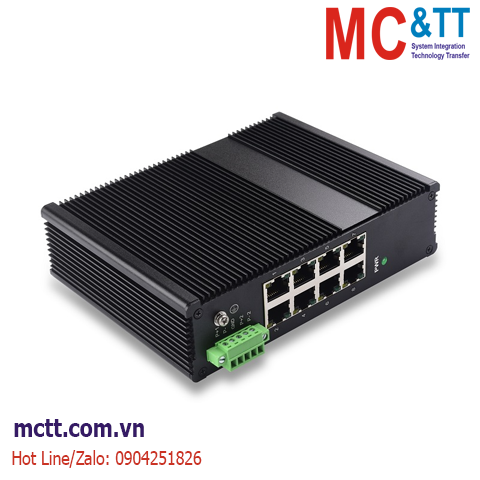

Switch công nghiệp 8 cổng Gigabit Ethernet JHA TECH JHA-MIGS08H-WEB

Chia sẻ

Thương hiệu: JHA TECH Loại: 8 Gigabit Ethernet

Tình trạng: Còn hàng

Mã sản phẩm: JHA-MIGS08H-WEB

Web Managment Industrial Ethernet Switch, 8 10/100/1000Base-T(X), DIN-Rail, DC10-55V, -40-85°C Operating Temperature

CAM KẾT CỦA CHÚNG TÔI

Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

FREESHIP Miễn phí vận chuyển

HSD: Không thời hạn

Sao chép

Mô tả sản phẩm

Switch công nghiệp 8 cổng Gigabit Ethernet JHA TECH JHA-MIGS08H-WEB

Short Description:

* Support 8 10/100/1000Base-T(X) PoE Ports；

* Web Smart Function;

* DC48-55V;

* IP40 rated aluminum alloy housing, ；

* 5-year warranty.

* Support VLAN, Qos,IGMP,Trunk Group Setting,Loop Prevention, RSTP global, Port-based Mirroring,SNMP；

Product Overview

JHA-MIGS08HP-WEB is a smart Web managed industrial Ethernet switch, which can provide economical solution for your Ethernet. Its dust-proof fully sealed structure(IP40 protection grade), over-current, over-voltage and EMC protected, redundant double power input as well as built-in intelligent alarm design can help system main tenancy personnel monitor the network operation, which can work reliably in harsh and dangerous environment.

JHA-MIGS08HP-WEB support 8 10/100/1000Base-T(X) Ethernet port. It support CE, FCC, RoHS standard, rugged high-strength metal case, power input (DC10-55V). The switch support IEEE802.3, IEEE802.3u, IEEE802.3x with 10/100Base-T(X), full/half-duplex, and MDI/MDI-X auto-adaptation, the -40-85℃ operating temperature can meet all kinds of industrial environment requirement, providing reliable and economic solution for your industrial Ethernet network.

Features

*Support 8 10/100/1000Base-T(X) Ethernet port(PoE Optional).

*Support IEEE802.3, IEEE802.3u, IEEE802.3x.

*Plug-and-play,10/100/1000Base-T(X), full/half duplex, MDI/MDI-X auto-adaptation.

*Industrial chip design, 15kV ESD protection, 8kV surge protection.

*DC10-55V redundancy power, reverse polarity protection.

*Industrial grade 4 design, -40-85°C operating temperature.

*IP40 rated aluminum alloy housing, DIN-Rail mounted.

Specification

Fixed port	8 10 / 100 / 10000base TX RJ45 ports (data) 1 reset* restore factory configuration button
Port characteristics	10 / 100 / 1000baset (x) automatic detection, full / half duplex MDI / mdi-x adaptive
Function switch	DUMP： Common network sharing WEB: SMART WEB management
Forwarding mode	Store and forward (full line speed)
backplane bandwidth	20 Gbps （No blocking）
Packet forwarding rate	13.4Mpps
MAC address	Support 16K
Cache	32K
Network protocol	IEEE 802.3,802.3i,802.3u,802.3x,802.3ab,802.3z
Twisted pair transmission	10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(150 meter) 1000BASE-TX ： Cat6 or later UTP(150 meter)
LED indicator	Power: power indicator 5 6: (optical port connection indicator) 1-4Port: (Gree:Link ; Orange:1000M Speed)
Overall power consumption	Full load maximum <10W
Supporting power supply	DC10-58V/AC 100-240V 50-60HZ
Operating temperature / humidity	-40～+85°C；5%～90% RH No condensation
Storage temperature / humidity	-40～+85°C；5%～95% RH No condensation
Product size	15811824mm
Net weight	0.75kg
Installation mode	Desktop type (optional with wall hanging + rack lug accessories)
Lightning protection / protection grade	Port lightning protection: 3KV 8 / 20us; Protection grade: IP30
PoE Support(Optional)	PoE ports:1-8
	PoE protocol:802.3af, 802.3at
	PoE pin assignment:1,2,3,6
	PoE Power:DC48-55V
Safety certification	IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us) IEC 61000-4-3 Level 3 (10V/m) IEC 61000-4-2 Level 4 (15KV/30KV) IEC 61000-4-4 Level 3 (1V/2V) IEC 61000-4-6 Level 3 (10V/m) IEC 61000-4-8 Level4 (30A/m) IEC 61000-4-11 Level3 (10V) EMI CLASS A Free fall 0.5mCE mark, commercial；CE/LVD EN60950； FCC Part 15 Class B；RoHS；
Warranty period	Complete machine 5 year (excluding accessories)

Dimension

Order Information

Model No.	Description of Goods
JHA-MIGS08H-WEB	Web Managment Industrial Ethernet Switch, 8 10/100/1000Base-T(X), DIN-Rail, DC10-55V, -40-85°C Operating Temperature
JHA-MIGS08HP-WEB	Web Managment Industrial PoE Switch, 8 10/100/1000Base-T(X) PoE/PoE+ Slot, DIN-Rail, DC48-58V, -40-85°C Operating Temperature
Power Supply: DC24V DIN-Rail Power Supply or Power Adapter is Optional. DC48V DIN-Rail Power Supply or Power Adapter is Optional(for PoE switch)
