Bộ chuyển đổi V.35 sang Ethernet JHA-CV1F1

Bộ chuyển đổi V.35 sang Ethernet JHA-CV1F1

Short Description

This Ethernet to V.35 protocol converter (interface converter) using large scale FPGA design, providing a DTE / DCE V.35 interface and Ethernet interface, can achieve 10 / 100Base-T Ethernet data E1 transmission on the channel, is a high performance, self-learning Ethernet bridge.

Product Description

This Ethernet to V.35 protocol converter (interface converter) using large scale FPGA design, providing a DTE / DCE V.35 interface and Ethernet interface, can achieve 10 / 100Base-T Ethernet data E1 transmission on the channel, is a high performance, self-learning Ethernet bridge. The device serves as an extension of Ethernet device using V.35 channel existing network (DDN, ISDN, ATM) provided (such as baseband cat), in order to achieve a lower cost Ethernet connectivity at both ends. Built-loop test equipment capabilities to facilitate the opening and routine maintenance works.

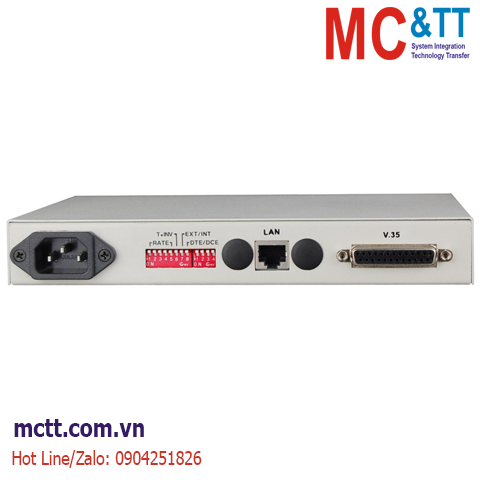

Product Photo

Features

• Based on self -copyright IC , high software content (kernel chip based on software)
• V.35 interface provide DTE and DCE type: DTE rate is 0 to 10M, DCE rate is n x 64k(N=1 to 32)
• Provide 2 loop functions: local V.35 loop, local 10 Base-T loop.
• Have pseudo random code test function, easy the installation and maintenance.
• Power supply option: AC220V, DC-48V. The positive and negative terminal can be exchanged for DC-48V, easy for installation
• Network manager interface SNMP management
• Deliver Ethernet over V.35 line

Parameters

♦ Ethernet interface(10/100M)

Interface rate: 10/100 Mbps, half/full duplex auto-negotiation

Interface Standard:     Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector:     RJ45, support Auto-MDIX

♦ V.35 interface

Interface rate:    n*64Kbps

Interface Standard: Compatible with V.35 Standard

Connector: M34/DB25

Connect Mode: DTE/DCE

Clock Type: G.703 restored clock, Internal clock

♦ Power

DC: -48V (-36 to -72V); +24 V (Optional)

AC: 90 to 260 VAC ; 47 ~ 63Hz

Power Interface: DC power terminal/AC socket

Power Consumption: ≤10W

♦ Working environment

Working temperature:    -10°C ~ 50°C

Working Humidity:    5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)

Specifications

Application

Thông tin đặt hàng

Tài liệu

Datasheet
