Bộ chuyển đổi Unframed E1 sang V.35 JHA-CE1V1

Bộ chuyển đổi Unframed E1 sang V.35 JHA-CE1V1

Short Description

This interface converter provides one E1 interface and one V.35 interface to achieve Unframed E1 interface transferring to V.35 interface. The data channel rate is 2.048Mbps. The device has inter-set loop test function to facilitate the project launching and daily maintenance.

Product Description

This interface converter provides one E1 interface and one V.35 interface to achieve Unframed E1 interface transferring to V.35 interface. The data channel rate is 2.048Mbps. The device has inter-set loop test function to facilitate the project launching and daily maintenance.

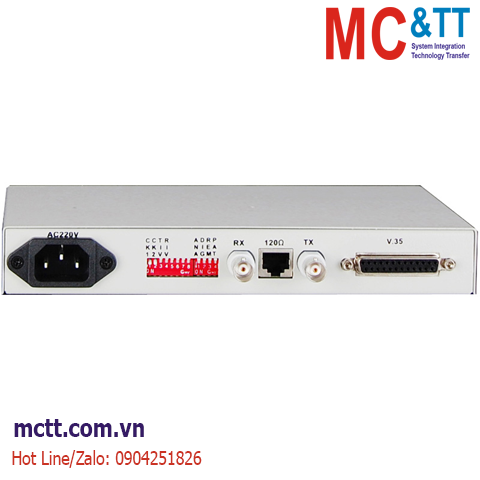

Product Photo

Features

• Based on self -copyright  IC
• E1 Interface Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
• After strict testing and practical verification system, completely comply with protocol ITU-T V.35, G.703, G.704
• Have three Loop Back Mode: E1 interface Loop Back (ANA)、V.35 interface Loop Back(DIG)、Command the  remote
• V.35 interface Loop Back(REM)
• Have pseudo random code test function, easily line opened, can be used as a 2M BER Tester
• V.35 interface supports hot-plug, supports DTE or DCE device interconnection
• Provide 3 clock types: Internal clock, External clock,E1 line clock;
• AC 220V, DC-48V, DC+24V, DC Power and Polarity-Free

Parameters

♦ E1 Interface

Interface Standard: comply with protocol G.703;
Interface Rate: 2048Kbps±50ppm;
Interface Code: HDB3;

E1 Impedance: 75Ω (unbalance), 120Ω (balance);

Jitter tolerance: In accord with protocol G.742 and G.823

Allowed Attenuation: 0~6dBm

♦ V.35 interface

Interface rate: n*64Kbps

Interface Standard:    Compatible with V.35 Standard

Connector:    DB25

Connect Mode:    DCE

Clock Type: G.703 restored clock, Internal clock

♦ Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)

Specifications

Application

Thông tin đặt hàng

Tài liệu

Datasheet
