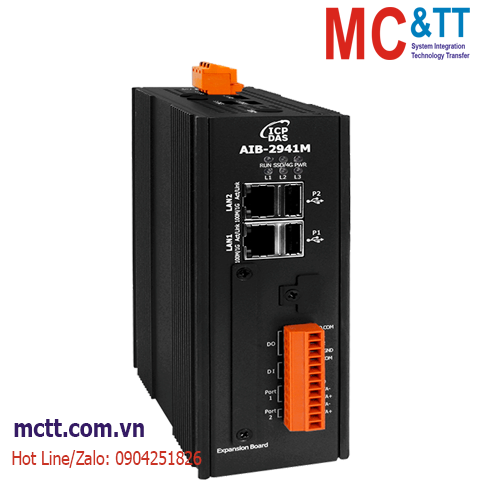

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ điều khiển nhúng (Edge AI controller) tích hợp card AI accelerator ICP DAS AIB-2941M CR
Features
Introduction
The AIB-2000 series controller is a fanless, secure, compact, low-power edge AI computing device powered by an ARM-based CortexR-A72 processor. Equipped with peripherals such as GbE LAN, HDMI, USB 3.1, DIO and 4G wireless connectivity. Through the AI accelerator module, AI computing capabilities can be expanded, and AI and edge computing can be introduced into industrial applications. A wide range of I/O expansion boards can be used for expansion. Rugged stainless steel housing and heat dissipation make it suitable for operation in -20 to +70 °C environments.
AI Accelerator Module
AIB-2000 series paired with Hailo-8 artificial intelligence module to realize edge AI solution.
Rich I/O Expansion
AIB-2000 series is equipped with multiple 485 serial communication ports, two Ethernet and USB ports to expand I/O and connect external devices.
For more details, please refer to AIB-2000 Introduction
Application
Specifications
| Software | |
|---|---|
| OS | Ubuntu OS |
| OS Support | X86，ARM |
| Multilanguage Support | English, Simplified Chinese, Traditional Chinese |
| SDK | C / Python Library |
| Main Unit | |
|---|---|
| CPU | Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 4GB LPDDR3 SDRAM |
| Storage | On-board 32GB eMMC |
| Non-Volatile Memory | 64 KB FRAM |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | Yes |
| AI Accelerator (Optional) | |
|---|---|
| Model Number | Hailo 8 Lite |
| AI frameworks | TensorFlow, TensorFlow Lite, Keras, PyTorch & ONNX |
| TOPS | 13 |
| Runtime | Rev. 4.19, pre-installed |
| Power Consumption | 1.5 W |
| Display | |
|---|---|
| GPU | VideoCoreVI (OpenGL ES 3.0, H.2654 HEVC (4Kp60fps decode), H.264(1080p60fps) |
| Signal | HDMI port x 1 (4Kp 60fps with Audio) |
| LED Indicators | |
|---|---|
| Status | 6 LED indicators for Power and Running; 3 LED for user defined |
| Digital Input | |
|---|---|
| Channels | 2 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +19 VDC ~ +24 VDC |
| OFF Voltage Level | +11 VDC Max. |
| Digital Output | |
|---|---|
| Channels | 2 |
| Type | Isolated Open Collector |
| Load Voltage | +24 VDC |
| Load Current | 100 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.1 A |
| Short-circuit Protection | Yes |
| I/O Expansion | |
|---|---|
| Slots | 1x XV-board/XB-board/eXV-board (Optional) 1x M.2 key B 2x M.2 key M Note: the three M.2 slots share one PCIe-2.0x1 |
| Audio | |
|---|---|
| Jack | Mic-In x 1 and Line-Out x 1 (Optional) |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100/1000 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
|---|---|
| Ports | 2 x RS-485 (2500 VDC Isolated) |
| USB | |
|---|---|
| Ports | 2 x USB 2.0 (host)，2 x USB 3.0 (host) |
| Power | |
|---|---|
| Input Range | +12 ~ +48 VDC |
| Consumption | 4.8 W (0.2 A @ 24 VDC) |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 52 mm x 177 mm x 128 mm |
| Installation | DIN-Rail / Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90 % RH,(non-condensing) |
Download
Ordering Information
| AIB-2941M CR | Edge AI controller, expandable AI accelerator (RoHS) |
