Introduction

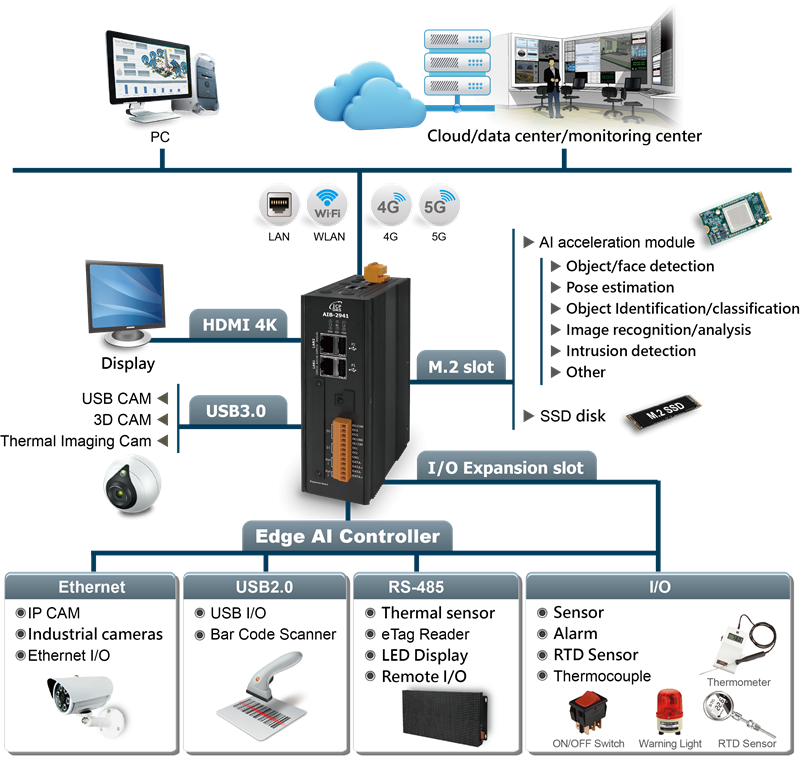

The EdgeAI controller is a fanless, secure, compact, low-power edge AI computing device powered by an ARM-based CortexR-A72 processor. Equipped with peripherals such as GbE LAN, HDMI, USB 3.1, DIO and 4G wireless connectivity. Through the AI accelerator module, AI computing capabilities can be expanded, and AI and edge computing can be introduced into industrial applications. A wide range of I/O expansion boards can be used for expansion. Rugged stainless steel housing and heat dissipation make it suitable for operation in -20 to +70C environments.

Software Features

Ubuntu is an easy-to-use operating system that is well-suited for both beginners and experienced users. It features an intuitive interface and a wealth of functionalities, making it versatile for various purposes and one of the most widely used Linux distributions. When applied to AIB-2000, it can fully leverage its capabilities and performance. Here are some key aspects of Ubuntu.

• Exceptional User Experience
• Ease of Use, Versatility, and Security
• Rich Community Support
• Embedded Services: Includes Web Server, FTP Server, Telnet Server, SSH Server.
• Comprehensive Software Support and Development Tools: Offers dedicated SDKs, Perl, Java, GUI software, and more.

Hardware Features

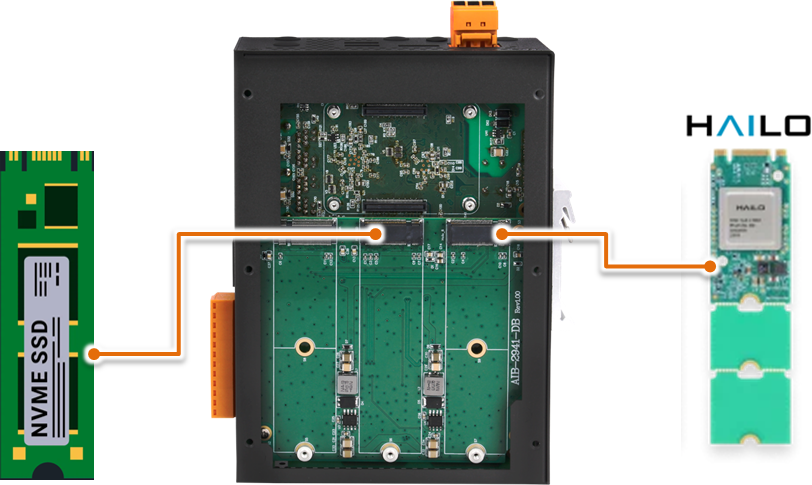

AI Accelerator Module

• M.2 Key M connector with PCIe interface for AI accelerator modules
• M.2 Key B connector with USB interface for AI accelerator modules
• M.2 Key M connector with PCIe interface for SSD

Provides M.2 Key M/Key B connector to flexibly expand different artificial intelligence modules

AIB-2000 paired with Hailo-8 artificial intelligence module to realize edge AI solution.

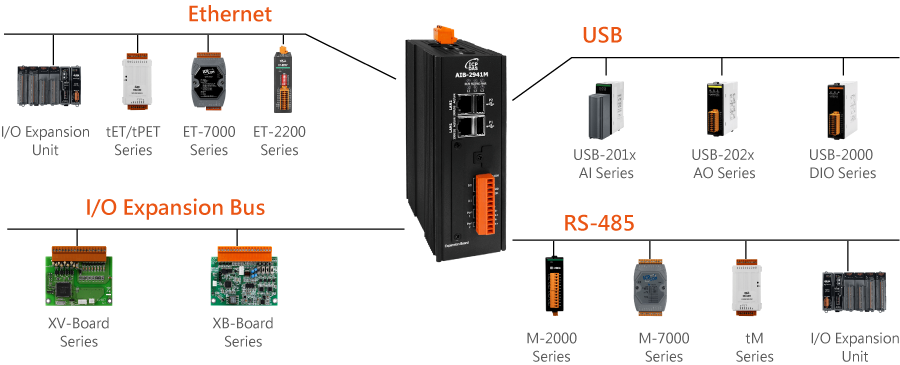

I/O Expansion Board

The AIB-2000 series is equipped with an I/O expansion bus, allowing users to purchase an XV-board or XB-board expansion card. It can be used to develop various I/O functions, such as: DI, DO, A/D, D/A, Timer/Counter and various communication interfaces, such as: RS-232/422/485... etc.

Remote I/O Module

AIB-2000 series modules have built-in RS-485 and Ethernet ports, which can be connected to RS-485/Ethernet remote I/O units (RU-87Pn/ET-87Pn) or modules (I-7000/M-7000/ ET-7000).

Rich I/O Communication Interface

AIB-2000 is equipped with multiple 485 serial communication ports, two Ethernet and USB ports to expand I/O and connect external devices.

Highly Reliable Under Harsh Environment

AIB-2000 operates in a wide range of temperature and humidity.

• Operating Temperature: -20°C ~ +70°C
• Storage Temperature: -40°C ~ +80°C
• Humidity 10 ~ 90% RH (non-condensing)

Selection Guide

Application Domains

• Industrial 4.0
• AIoT Smart factory/manufacturing
• Automation
• Smart parking
• Optical Inspection
• Security Surveillance
• Predictive Maintenance
