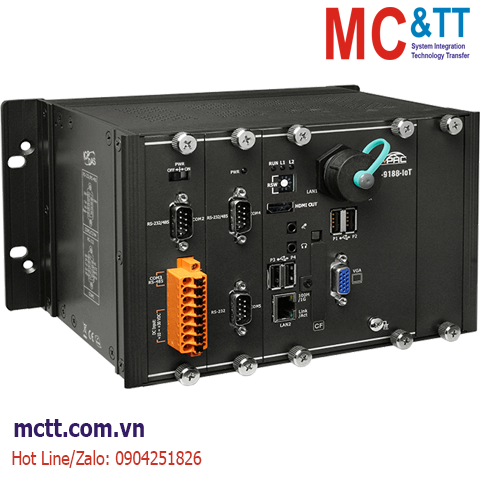

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ lập trình nhúng Win-GRAF PAC với CPU Atom E3845 ICP DAS XP-9188-IoT CR
Features
• Windows 10 IoT Enterprise (64-bit)
• Intel® Atom™ E3845 1.91 GHz
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• 4 GB DDR3 SDRAM
• 64 GB SSD
• VGA and HDMI Port Output
• 2 10/100/1000M Ethernet Ports
• Support eLogger HMI
• Support Dual-PAC Redundant System
Introduction
The Win-GRAF XP-9000-IoT series PACs, powered by Windows 10 IoT Enterprise, seamlessly combine computing, I/O, and an operator interface into one unit—making it an ideal solution for integrating HMI, data acquisition, and control within a single PAC. Equipped with an Intel E3845 CPU and 1/3/7 I/O expansion slots, it offers a wide range of connectivity options including dual Gigabit Ethernet, VGA, USB ports, and RS-232/RS-485 interfaces. The local I/O slots support I-9K and I-97K series I/O modules, while remote I/O expansions are available via Ethernet and RS-485 I/O modules.
The benefits of running Windows 10 IoT Enterprise on 64-bit x86 platform are as following:
1. Faster data computing: with Intel E3845 CPU, Win-GRAF can now works more effectively on IoT platform.
2. Higher Internet security: level up OS leads to upgrade system security.
3. Rich applications developed on Windows 10: support for Universal Windows applications.
Specifications
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise (64-bit) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support | .Net Framework 3.5 ~ 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
|---|---|
| CPU | E3845, 1.91 GHz, 64-bit quad core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 4 GB DDR3 SDRAM, 64 GB Flash |
| Storage | 64 GB SSD, 32 GB CF card |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
|---|---|
| Signal | VGA, HDMI |
| Resolution | VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3) HDMI 2560 x 1600 @ 24bpp |
| LED Indicators | |
|---|---|
| Status | 1 x System, 2 x Power, 2 x Programmable |
| I/O Expansion | |
|---|---|
| I/O Type | I-9K, I-97K series |
| Slots | XP-9188-IoT: 1 XP-9388-IoT: 3 XP-9788-IoT: 7 |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
|---|---|
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
|---|---|
| Ports | 4 x USB 2.0 |
| Power | |
|---|---|
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | XP-9188-IoT: 18.5W XP-9388-IoT: 18.7W XP-9788-IoT: 20.4W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | XP-9188-IoT: 239 x 164 x 133 (W x L x H) XP-9388-IoT: 300 x 164 x 133 (W x L x H) XP-9788-IoT: 422 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Download
Ordering Information
| XP-9188-IoT CR | 1-slot Win-GRAF based XP-9000-IoT series PAC (RoHS) |
