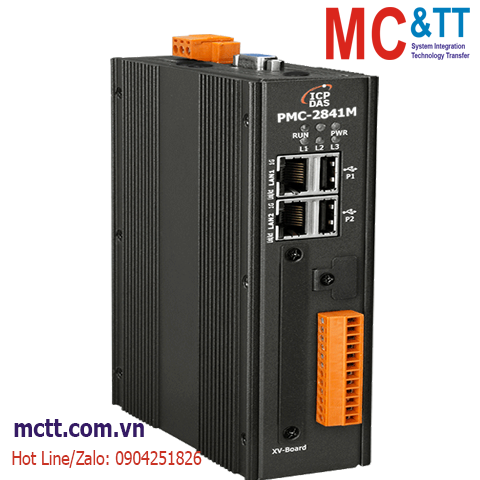

Miễn phí vận chuyển với đơn hàng từ 10.000.000đThiết bị quản lý năng lượng IoT ICP DAS PMC-2841M CR
Tính năng
Giới thiệu
PMC-2841M is the IIoT Power Meter Concentrator ICP DAS provide for the era of IoT and Cloud computing. It provides flexible integration with the ICP DAS power meters via RS-485 or Ethernet interface, and features various functions such as: measure the power consumption of the devices, energy usage analysis, power data log operation, power demand management and alarm notification functions. PMC-2841M offers a user-friendly and intuitive web site interface that allows users to implement the Energy monitoring system just a few clicks away; no programming is required. By working with the power meters, IF-THEN-ELSE logic rule execution ability, and LINE/WeChat/Telegram/Email alarm message notification functions, PMC-2841M offers more thought-out power demand management functions, and is able to perform load shedding of the devices if required. In addition, PMC-2841M supports VPN Client, SNMP agent v3, SFTP, FTPS and HTTPS. With a variety of Security mechanism and protocols provided by PMC-2841M, it can meet the requirements of information Security when building an IoT Cloud power monitoring system.
Ứng dụng
Energy measurement, monitoring and management
Thông số kỹ thuật
| Software | |
|---|---|
| Protocol | • Modbus TCP & Modbus RTU • FTP Client (Support SFTP/FTPS) & Server (Support TLS Encryption) • SNMP v2c/v3 & SNMP Trap • MQTT Client (Message Publish & Subscribe; Support SSL/TLS) • CGI Command (Sending & Receiving) • Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap) • DDNS • VPN |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • Power meters & I/O modules monitoring and control • Data Logger operation • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Internal Register operation (70 set supported) • Instant message sending function (LINE, Telegram, WeChat) • non-SSL & SSL Email sending function • SNTP Time Synchronization |
| Power Management | • Power Data Display • Historical Power Data Report • Power Demand Management • PUE Setting and Display |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
|---|---|
| CPU | Quad-core ARM CPU, 1.6 GHz/Core |
| Storage Expansion | microSD socket with 4 GB microSD card (support up to 2 TB microSDHC card) |
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x Running |
| I/O Expansion | |
|---|---|
| I/O Type | XV-board |
| Remote Module Support | M-7000/DL/IR Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| Power Meter | PM Series Modbus meter |
| Ethernet | |
|---|---|
| Ports | RJ-45 x 2, 10/100/1000 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
|---|---|
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
|---|---|
| Input Range | 12 ~ 48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 42 × 164 × 129 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Thông tin mua hàng
| PMC-2841M CR | Advanced IIoT Power Meter Concentrator (Metal Case) (RoHS) |
