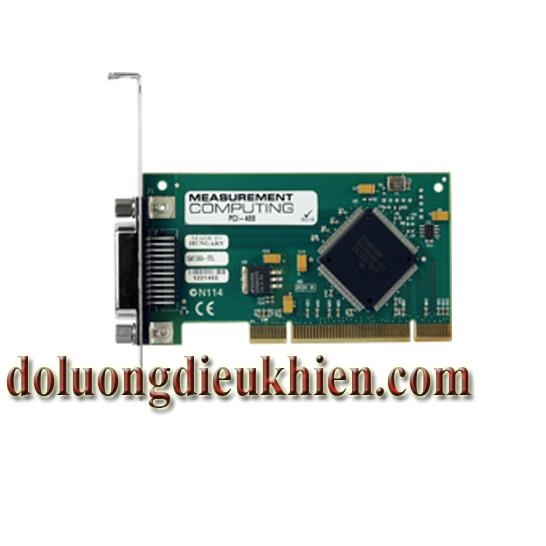

PCI-488 PCI bus IEEE-488 board

• Up to 14 devices can be connected
• 20 meters standard cable length
• Data transfer rate up to 1MB/s
• Follow IEEE488, IEEE488.1, IEEE488.2, SCPI
• Dimensions : 120 x 64.4 mm (PCI-488)

Hardware
PCI-488 can work in any computer with one or more PCI slots and control all 488, GPIB and HP-IB instruments. PCI-488 implements all required and optional features of the IEEE-488.2 standard in controller or device mode as a talker and a listener. PCI-488 hardware is 100% compatible with existing applications currently running on our other IEEE 488 cards.

Software
PCI Plug & Plug software with auto addressing provides instant-on switch with less configuration. All IEEE 488.2 functions and commands are supported. These include listen, talk, device clear, group execute trigger, go to local, interface clear, local lockout, parallel poll configure or disable, remote enable, selected device clear, serial poll, pass control, unlisten, and untalk.

Support Languages
Visual BASIC, Visual C++, C and Delphi

Operating System
Windows 2000/XP

Additional Features

‧ IEEE-488.2 subroutines
‧ Data transfer between computers
‧ Hardware diagnostics
‧ Example program library
