Short Description:
L3 8 port Managed Industrial Ethernet Switch with M12 connector
Product Overview

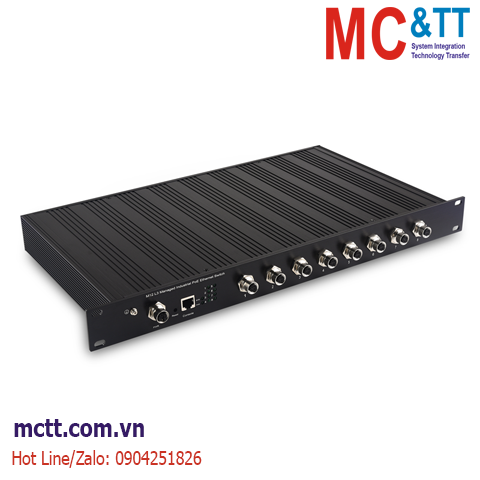

JHA-MIG08H-M12 Provides 8 Gigabit M12 interfaces (POE function is optional), the product complies with the requirements of EN50155 and EN50121 industry standards.POE power supply complies with IEEE 802.3af/at protocol standards. The Ethernet interface adopts the solid and reliable M12 format, which can be applied to the use of severe vibration and shock scenes. Adopting 1U rack mounting mode, it can meet the needs of different application sites. The hardware adopts fanless, low power consumption, wide temperature and voltage design, and passes the strict test in line with the industry standard, which can be widely used in vehicle PIS, CCTV, video surveillance, train control and other systems. It adopts self-developed JHA-RING ring technology (network failure self-healing time <20ms), users can easily set up a redundant ring network to increase network reliability, in addition to supporting CLI, SNMP, WEB, VLAN management, Console/Telnet command line management. Rich QoS features for data traffic control and management, support for ring protocol, RSTP, and STP Ethernet redundancy, support for port-based VLANs, IEEE 802.1Q VLANs, and GVRP negotiation. The product also adopts fanless, low-power, industrial-grade design to adapt to harsh industrial environments, with -40 to 85°C operating temperature range, which can meet the requirements of various industrial sites and provide economical solutions. It can be widely used in vehicle PIS, CCTV, video surveillance, train control and other systems.
Features
*8 10/100/1000Base-TX adaptive Ethernet M12 interfaces
*Support IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3af/at standards
*Support CLI, SNMP, WEB, VLAN management, Console/Telnet command line management, using self-developed ring technology, network self-healing time <20ms
*DC10-58V wide-voltage dual power supply redundancy backup, with anti-reverse connection protection function
*With four-level lightning protection chip design, it can effectively resist lightning strikes below 8kV, and anti-static up to 8-15kV
*All industrial-grade materials, IP40 protection level, low power consumption, industrial-grade design: -40 to 85 ℃ working temperature
*Corrugated high-strength aluminum alloy shell, DIN rail mounting
*Passed the Ministry of Public Security inspection report, CCC, FCC, CE, RoHS
*Support PoE expansion, IEEE802.3af: maximum power 15.4W, IEEE802.3at: maximum power 30W.
Specification
|
Interface |
|
|
Interface |
Gigabit M12: 10/100/1000Base-T(X), M12 (Female) Support POE function, single POE port supports 30W output power, POE total power support up to 240W |
|
Power connector |
M12 |
|
Indicators |
Power Indicator: PWR (green); System Indicator: SYS (green); Network Port Indicator: Yellow (1000 or POE) Green (Link) |
|
Network Topology & Sizing |
|
|
Ring Topology |
Support |
|
Star Topology |
Support |
|
Bus Topology |
Support |
|
Tree Topology |
Support |
|
Hybrid Topology |
Support |
|
Cable type and distance |
|
|
Twisted pair |
0-100m (CAT5e, CAT6) |
|
Single mode fiber |
20/40/60/80/100KM |
|
Multimode fiber |
550m/2KM |
|
Fiber interface |
LC/SC |
|
Electrical characteristics |
|
|
Input voltage |
DC10-58V/AC 100-240V 50-60HZ |
|
Power consumption |
Non-POE full load (Total power) <10W POE full load <132W |
|
PoE support optional |
|
|
PoE ports |
1-8 |
|
PoE protocol |
802.3af, 802.3at |
|
PoE pin assignment |
1,2,3,6 |
|
PoE management mode |
Support |
|
Layer 2 |
|
|
Switching Capacity |
64Gbps |
|
Packet Forwarding Rate |
47.6Mpps |
|
MAC Address Table |
16K |
|
Vlan |
4K |
|
Packet Butter |
12Mbit |
|
Forwarding delay |
<10us |
|
Port features |
Cross-connection and direct connection adaptation |
|
Flow control |
Support |
|
Jumbo frame Support |
10Kbytes |
|
Spanning tree protocol |
Support STP/RSTP/MSTP |
|
Ring network protocol |
Support ERPS |
|
Link aggregation |
Support 12 groups |
|
Multicast |
Support IGMP Snooping |
|
Port mirroring |
Support |
|
Storm suppression |
Support |
|
Port traffic statistics |
Support |
|
QINQ |
Support |
|
EMC Standards |
EN61000-4-2 Anti-static (ESD): ±8kV contact discharge, ±15kV air discharge |
|
EN61000-4-3 Electromagnetic field: 10V/m (80-1000MHz) |
|
|
EN61000-4-6 Anti-conduction: 3V (10kHz~150 kHz), 10V (150kHz~80 MHz) |
|
|
EN55022: EN55022 Class A |
|
|
EN61000-4-2 Anti-static (ESD): ±8kV contact discharge, ±15kV air discharge |
|
|
Aggregation Services |
|
|
ACL |
Support 500 ACLs; |
|
Support IP standard ACL; |
|
|
Support MAC extended ACL; |
|
|
Support IP extended ACL; |
|
|
QoS |
Support QoS re-marking, priority mapping; |
|
Support SP, WRR queue scheduling; |
|
|
Support ingress speed limit, egress speed limit; |
|
|
Management Features |
|
|
Command line |
Support |
|
Management serial port |
Support |
|
Telnet |
Support |
|
WEB management |
Support |
|
SNMP |
Support SNMPv1/v2c |
|
User management |
Support |
|
System log |
Support |
|
File upgrade |
Support |
|
SFP module DDM |
Support |
|
Physical& Environment |
|
|
Operating temperature |
-40℃~+85℃ |
|
Storage/transportation temperature |
-40℃~+85℃ |
|
Relative humidity |
5%~95% Non-condensing |
|
Cooling method |
Fanless design, natural heat dissipation |
|
MTBF |
100,000 hours |
|
Dimensions 440X250X44.5mm |
440X250X44.5mm |
|
Installation method |
1U 19-inch rack installation All-aluminum alloy material |
|
Weight |
2.8KG |
Dimension
Order Information
|
Model Number |
Description of Goods |
|
JHA-MIG08H-M12 |
Managed Industrial Ethernet Switch, 8*10/100/1000BASE-T(X) M12 Port(poe optional) D-Coding, 4 PinMale cable connector 1U rack mount |
