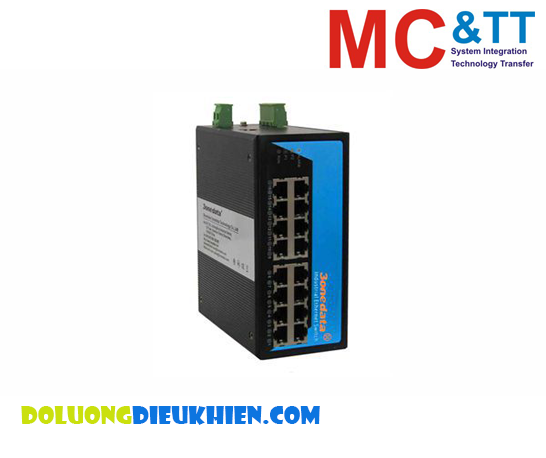

Miễn phí vận chuyển với đơn hàng từ 10.000.000đIES3016G: Switch công Nghiệp 16 cổng Gigabit Ethernet 3onedata
IES3016G is an industrial grade, unmanaged Ethernet switch which supports 16 Gigabit Ethernet Ports. Standard Industry design, can satisfied every requirement of the industry scene. All components used industry grade, it takes products high reliability. It provided wide voltage power supply input.
Product accorded to CE, FCC standard and Industry grade 4 design requirement, support 2 channel DC power input and -40～75℃ working temperature, can meet all kinds of Industrial environment requirement and provide the solution of the economy.
Features
Support IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE802.3ab
Support 16-port 10/100/1000Base-T(x)
Support MAC address auto-learning, auto-aging
Support 10K MAC address
Support 56Gbps backboard bandwidth
Support redundancy DC power supply 48VDC
Industrial grade 4 design, -40-75℃ working temperature
IP40 protection grade, DIN-Rail mounting
Specification
Technology
Standard: Support IEEE802.3, IEEE802.3u, IEEE802.3ab
Flow control: IEEE802.3x flow control, back press flow control
Exchange attribute
1000M forward speed: 1488100pps
Transmit mode: store and forward
Backplane bandwidth: 56G
MAC table size: 10K
Buffer size: 12M
Interface
Gigabit RJ45 port: 10Base-T/100Base-TX/1000Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect
Console port: Reserved
Alarm port: 2 bit terminal block
1 channel relay alarm output
Transfer distance
Twisted-pair: 100m(standard CAT5/CAT5e cable)
LED indicator
Run indicator: RUN
Interface indicator: Link (G1~G16)
Power supply indicator: P1, P2
Alarm indicator: ALARM
Power supply
Input Voltage: 48VDC
Type of input: 4 bits terminal block
support reverse connection
support redundant power supply
Consumption
No-load consumption: 11.04W@48VDC
Full-load consumption: 12.88W@48VDC
Working environment
Working temperature: -40～75℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP40 protection, metal shell
Installation: DIN-Rail mounting
Weight: 1080g
Size (W×H×D): 70mm×160mm×130mm
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Level 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS, UL508 (Pending)
Warranty: 5 years
Packing List
1. Industrial Ethernet Switch ×1
2. User manual ⅹ 1
3. Certificate of quality ⅹ 1
4. Warranty card ⅹ 1

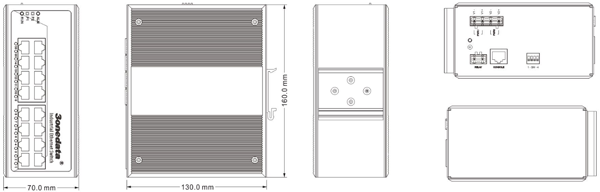

Dimension
Download
Ordering Information
IES3016G: 16-port Full Gigabit Industrial Ethernet Switch
