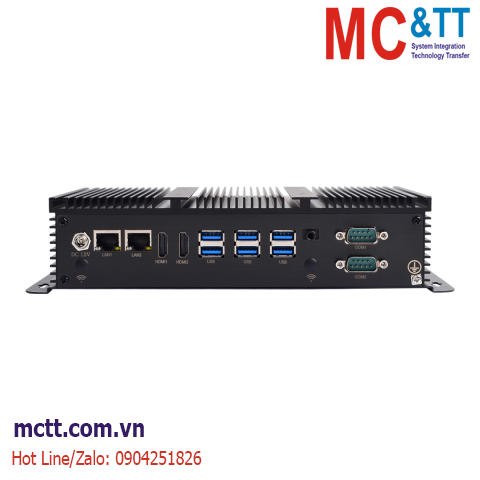

Máy tính nhúng công nghiệp không quạt (2 LAN + 6 COM) TP-IPC IBOX-104V2-2L6C-11TH

Chia sẻ

Thương hiệu: TP-IPC Loại: 2 LAN + 6 COM

Tình trạng: Còn hàng

Mã sản phẩm: IBOX-104V2-2L6C-11TH

CAM KẾT CỦA CHÚNG TÔI

Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

FREESHIP Miễn phí vận chuyển

HSD: Không thời hạn

Sao chép

Mô tả sản phẩm

Máy tính nhúng công nghiệp không quạt (2 LAN + 6 COM) TP-IPC IBOX-104V2-2L6C-11TH

The IBOX-104V2-2L6C-11TH system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.

Tính năng

With new Intel® Iris® Xe graphics, the platform offers up to 2.95 times faster graphics performance.
The graphics, media, and display engine with up to two VDBOXes that can decode over 40 incoming video streams at 1080p and 30 frames per second.Full sealed design with aluminum alloy cooling enclosure, dustproof, anti-vibration and anti-interference.
Ultra-thin design, 44mm height, max optional 55mm height.
Modular Expansion, it comes with three M.2 slots for wireless cards (5G/4G, Wi-Fi, Bt, and GNSS) and M.2 SSD.
Full sealed design with aluminum alloy cooling enclosure, dustproof, anti-vibration and anti-interference.
Supports VESA and wall mounting for different applications.
Optional super slim internal fan cooling system when the TDP is 28W

Tổng quan sản phẩm

IBOX-104V2-2L6C-11TH Embedded Mini PC with Intel® 11th Processor provides you more computing power and cost advantage. Dual-channel SO-DIMM DDR4 delivers up to 64GB of memory, supports 2HDMI 4096×2304@24Hz, and is dust, interference, and temperature resistant. Wide range of I/O interfaces including 2LAN, 6COM, 6*USB3.0; 4*USB2.0 to meet the requirements of most markets. M.2 interface for Wi-Fi and SIM card slot for expansion and built-in Bluetooth. Easy desktop installation is possible.

Thông số kỹ thuật

Model	IBOX-104V2-2L6C-11TH
Supported OS	Win 10, Win 10 IoT, Linux (Ubuntu, Dibian, Kali, CentOS, etc.)
CPU	CPU Model	Intel® Core™ i7-1165G7	Intel® Core™ i5-1135G7	Intel® Core™ i3-1115G4	Intel® Celeron® 6305E
	Graphic	Intel® Iris® Xe Graphics, Up to 96 EUs,1.3Ghz	Intel® Iris® Xe Graphics, Up to 80 EUs,1.3Ghz	Intel® UHD Graphics, up to 48 EUs, 1.25Ghz	Intel® UHD Graphics, up to 48 EUs, 1.25Ghz
	TDP	15W by default, 12/ 28W optional			15W
RAM	SO-DIMM	2* non-ECC SO-DIMM Socket, support DDR4-3200 MHz, up to 64GB
Storage	M.2	1* M.2 (NGFF) 2280 M-key Slot, SATA3.0 by default, support PCIex4 Gen.4 NVMe SSD
	SATA	1* SATA3.0 7P Connector (6Gb/s), with 1 * SATA Power Header [1]
I/O INTERFACE	COM	3* RS232 (COM1/2/3, Header, Full lanes) 2* RS232/TTL (COM4/5, Header, 3 lanes); 1* RS232/RS485/TTL (COM6, Header, 3 lanes) (COM4/5/6 RS232/TTL sel by res, support RS232 by default. COM4/5/6 must be used at the same mode)
	Ethernet	2* Intel® GbE LAN (10/100/1000 Mbps, RJ45)
	USB	6* USB3.0; 4 * USB2.0 Internal Headers
	Video	2* HDMI(TYPE-A), max resolution up to 4096*2160@30Hz
	Audio	1 * Line-Out + MIC 2in1 3.5mm Jack; With 7.1 channel HD Audio Codec Realtek ALC897; 1 * Amplifier Header
	SIM	1* Built-in nano-SIM Card Slot connected to M.2 B-key slot
	Power Supply	12V DC; 1* DC Threaded Jack (5.5* 2.5mm) Optional 9-30V DC PWR module with Terminal Block (2-Pin, 5.08mm)
	Other	1* 8-bit GPIO header with 4 inputs and 4 outputs, Input voltage range: 0-5V;
Extended Capabilities	Additional Internal Interface	1* M.2 (NGFF) E-key Slot (PCIe+USB2.0, Support WiFi+BT, 2230) 1* M.2 (NGFF) B-key Slot (PCIe/USB3.0+USB2.0, Support 5G+4G/3G, with 1* nano-SIM Card Slot, 3052)
	Functionality Extension	COM, LAN, USB, CAN BUS, Wi-Fi, 4G
Environment	Operating Temperature	-10 ~ 50 °C w/ 0.7m/s Airflow
	Storage Temperature	-40 ~ 85 °C (-40~185 °F)
	Relative Humidity	40 °C @ 95%, Non-Condensing
Physical Characteristics	Dimensions	250* 44* 153 mm (W* H* D) (It has a higher version with 49mm shell)
	Net Weight	1.5 KG
Regulation	EMC	CE/FCC Class B, CCC
	Safety	CE-LVD, RoHS, CCC

Kích thước sản phẩm

Bộ xử lý CPU

CPU	Code Name	Total Cores	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	Memory Types	Integrated Graphics
Intel® Core™ I7-1165G7	Tiger Lake	4	8	4.70 GHz	2.80 GHz	12 MB Intel® Smart Cache	12-28W	DDR4	Intel® Iris® Xe Graphics; 96Eus
Intel® Core™ I5-1135G7	Tiger Lake	4	8	4.20 GHz	2.40 GHz	8 MB Intel® Smart Cache	12-28W	DDR4	Intel® Iris® Xe Graphics; 80Eus
Intel® Core™ I3-1115G4	Tiger Lake	2	4	4.10 GHz	1.70 GHz	4 MB Intel® Smart Cache	12-28W	DDR4	Intel® Iris® Xe Graphics; 48Eus
Intel® Celeron® 6305E	Tiger Lake	2	2	–	1.80 GHz	4 MB Intel® Smart Cache	15W	DDR4	Intel UHD Graphics; 48Eus

Phụ kiện mua thêm

Optional Items	Max Qty	Description
DC9-30V TO DC 12V PWR module	1	Phoenix Terminal connector, Power supply voltage conversion module, connected by header
Isolated RS-232	6	DB9 or Phoenix Terminal connector, connected by header
Isolated 8-bit GPIO, 9-24V	1	Phoenix Terminal connector, connected by header
4G Module	1	Connected by M.2 interface
WiFi Module without AP mode	1	Connected by M.2 interface
Dual channel CAN-Bus Module	1	Connected by M.2 interface
