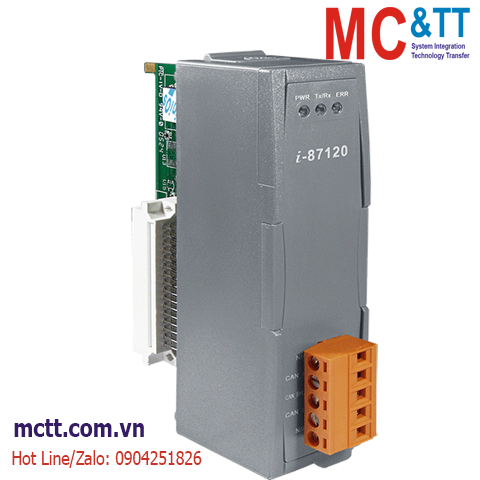

Miễn phí vận chuyển với đơn hàng từ 10.000.000đI-87120-G CR: Module 1 cổng CAN cho bộ lập trình nhúng PAC
Features
Introduction
CAN (Controller Area Network) is a serial bus control protocol especially suited to constrnct intelligent industry devices networks and build smart automatic control systems. It is popularly applied in the industrial automation, building automation, vehicle, marine, and embedded control network. In order to expand the CAN functions of ICPDAS products, I-87120 module is developed for this purpose. It is a kind of module, and need to be plugged into a host unit, such as I-8000 and iP-8000 series MCU (Main Control Unit), ViewPAC-2000, WinPAC-8000, LinPAC-8000 and XPAC-8000-CE6. I-87120 give a way to connect these ICPDAS host unit with CAN network. Owing to the features of I-8000, iP-8000, ViewPAC-2000, WinPAC-8000, LinPAC-8000 and XPAC-8000-CE6, these host units can be arranged to be a CAN converter, CAN slave device and CAN master device in a CAN network. The righr-hand-side figure shows the application architecture for I-87120 modules.
Applications
• DeviceNet, CANopen, CAN J1939, SDS (System Wide Network) protocol application
• CAN bus communication application
• Industry automation
• Industrial Machinery
• Building Automation
• Food & Beverage
• Semiconductor Fabrication
• Control system
Specifications
| Software | |
|---|---|
| Driver | For I-8000/ iP-8000/ ViewPAC-2000/ WinPAC-8000/ LinPAC-8000/ XPAC-8000-CE6 |
| Library | TC/BC, GCC, VB.Net 2003, C#.Net 2003, VB.Net 2005, C#.Net 2005, eVC++ 4.0 |
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Real Time Clock | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x CAN status 1 x Operating mode |
| CAN | |
|---|---|
| Controller | NXP SJA1000T with 16 MHz clock |
| Transceiver | NXP 82C250 |
| Ports | 1 |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Power | |
|---|---|
| Consumption | 2 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 91 x 115 (W x L x H) |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +7 5 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering information
| I-87120-G | 1-port Programmable CAN Module (Serial Bus Type) (RoHS) |
