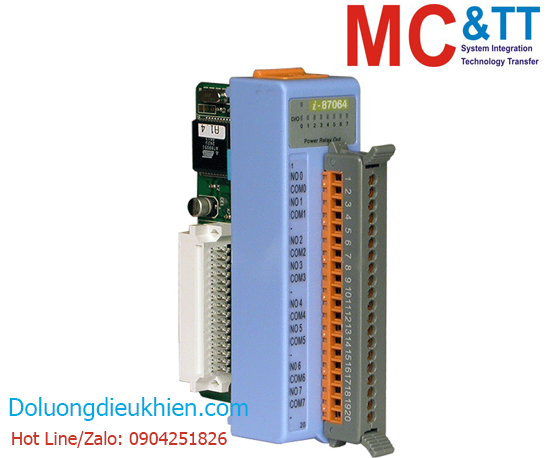

I-87064 CR: Module 8 kênh đầu ra Power Relay

Features

• 8-channel Power Relay Output
• Form A Power Relay Output
• 3000 VDC Intra-module Isolation
• Configurable Power-on Value
• Configurable Safe Value

Introduction

The I-87064 module provides 8 Form A Relay Output channels, and is an ideal solution for high-power applications. The I-87064 includes 8 LED indicators that can be used to monitor the status of the Relay Output channels, and options are available for configuring power-on and safe values. 4 kV ESD protection and 3000 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.

Specification

CPU Module
Watchdog Timer Yes, Module (1.6 Seconds), Communication (Programmable)



Isolation
Intra-module Isolation 3000 VDC



LED Indicators
Status 1 x Power and Communication
8 x I/O



Relay Output
Channels 8 (Form A)
Type Power Relay
Contact Rating Form A:
5 A @ 250 VAC (Resistive Load)
5 A @ 30 VDC (Resistive Load)
Operate Time 6 ms (Max.)
Release Time 3 ms (Max.)
Electrical Endurance 1 x 105 ops.
Mechanical Endurance 2 x 107 ops.
Power on Value Yes
Safe Value Yes



COM Ports
Baud Rate 115200 bps
Data Format N, 8, 1
Protocol DCON



Power
Consumption 2.4 W Max.



Mechanical
Dimensions (mm) 31 x 116 x 88 (W x L x H)



Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 5 ~ 95% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

I-87064     CR  8-ch Form A Power Relay Module (5A Rating Current) (Blue Cover) (RoHS)
