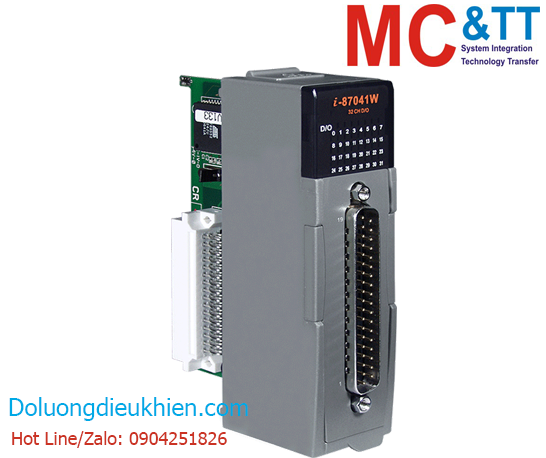

Miễn phí vận chuyển với đơn hàng từ 10.000.000đI-87041W-G CR: Module 32 kênh đầu ra số DO
Features
• 32-channel Open Collector Output
• Sink-type Digital Output
• Short circuit protection, Overvoltage Protection and Overload Protection for I-87041PW
• Optional Daughterboards
• 4 kV ESD Protection
• 3750 Vrms Intra-module Isolation
• Configurable Power-on Value
• Configurable Safe Value
• RoHS Compliant
• Wide Operating Temperature Range: -25 to +75°C
Introduction
The I-87041W module offers 32 Digital Output channels, each of which features Photocouple isolation and supports sink-type output using an open collector. The I-87041W includes 32 LED indicators that can be used to monitor the status of the Digital Output channels, and options are available for configuring both power-on and safe values. 4 kV ESD protection and 3750 Vrms intra-module isolation is provided as standard. The I-87041W can be paired with a daughterboard, such as the DN-37-381-A for easy wiring, or the DN-8K32R for relay output.digital output module for industrial use.
I-8040W/40PW/41W/41AW/42W and I-87040W/41W with DN-37-381-A

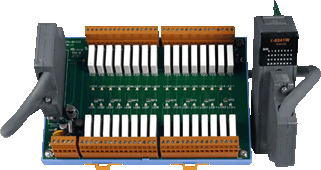

I-8041W/I-8041PW and I-87041W/I-87041PW with DN-8K32R
Specification
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 32 x I/O |
| Digital Output | |
|---|---|
| Channels | 32 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 VDC ~ +30 VDC |
| Max. Load Current | 100 mA/Channel |
| Power on Value | Yes |
| Safe Value | Yes |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | DCON |
| Power | |
|---|---|
| Consumption | 1.7 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30 x 85 x 114 (W x L x H) |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering information
| I-87041W-G CR | 32-ch Isolated DO (Sink, NPN, 5~30 VDC) Module (RoHS) |
