I-87018ZW-G/S CR: Module 10 kênh đầu vào cặp nhiệt (Thermocouple)

Chia sẻ
Thương hiệu: ICP DAS Loại: I-8K/I-87K Analog I/O
Tình trạng: Còn hàng
Mã sản phẩm: I-87018ZW-G/S CR

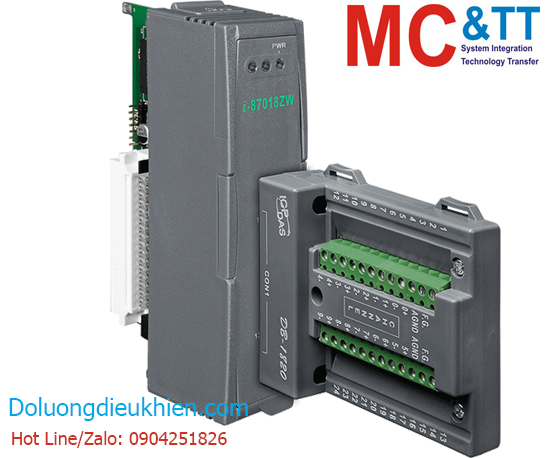

I-87018ZW-G/S CR 10-ch Thermocouple Input Module with High Overvoltage Protection (RoHS) Includes DB-1820 Daughter Board

Liên hệ
CAM KẾT CỦA CHÚNG TÔI
  • cam kết Cam kết 100% chính hãng
  • cam kết Hoàn tiền 111% nếu hàng giả
  • cam kết Giao hàng nhanh chóng & an toàn
  • cam kết Hàng hóa đầy đủ CO, CQ
  • cam kết Hỗ trợ 24/7
Liên hệ
Để được hỗ trợ. Hãy gọi: 0904251826
vouverKhuyến mãi đặc biệt !!!
  • Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
  • Miễn phí vận chuyển với đơn hàng từ 10.000.000đMiễn phí vận chuyển với đơn hàng từ 10.000.000đ
FREESHIP
FREESHIP Miễn phí vận chuyển
HSD: Không thời hạn
Sao chép

I-87018ZW-G/S CR: Module 10 kênh đầu vào cặp nhiệt (Thermocouple)

Features

• Current Input, Voltage Input and Thermocouple Input
• 240 Vrms Overvoltage Protection
• Individual Channel Configuration
• Open Thermocouple Detection
• Temperature outputs consistency
• Stable temperature output in the field
• 4 KV ESD Protection
• 3000 VDC Intra-module Isolation
• 3750 Vrms Photo Isolation
• RoHS Compliant
• Wide Operating Temperature Range: -25 ~ +75°C

Introduction

The “Z” version is another milestone in the development of I-87018 and a testament to excellence by ICP DAS R&D team. I-87018ZW is specifically designed for extremely accurate thermocouple measurement. It features automatic compensation for each channel. Current input and voltage input are supported. Another feature is that ten of its input channels can individually be configured with different kinds of analog input. I-87018ZW also got open thermocouple detection and many protection mechanisms.

Specification

CPU Module
Watchdog Timer Yes, Module (1.6 Seconds), Communication (Programmable)



Isolation
Intra-module Isolation 3000 VDC



EMS Protection
ESD (IEC 61000-4-2) ± 4 kV Contact for Each Terminal
±8 kV Air for Random Point



LED Indicators
Status 1 x Power and Communication



Analog Input
Channels 10
Type Voltage、Current、Thermocouple
Sensor Type (J, K, T, E, R, S, B, N, C, L, M, LDIN43710
Temperature Output Consistency Yes
Stable Temperature Output in the Field Yes
Range +/- 15 mV, +/- 50 mV, +/- 100 mV, +/- 500 mV, +/- 1 VDC, +/- 2.5 VDC
+/-20 mA, 0 ~ +20 mA, +4 ~ +20 mA (Requires Optional External 125 Ω Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, LDIN43710)
Resolution 16-bit
Accuracy ±0.1% of FSR
Sampling Rate 10 Hz (Total)
Bandwidth 15.7 Hz
Input Impedance >400 kΩ
Common Mode Rejection 150 dB
Normal Mode Rejection 100 dB
Overvoltage Protection 240 Vrms
Individual Channel Configuration Yes
Open Wire Detection Yes
Zero Drift ±0.5 μV/°C
Span Drift ±25 ppm/°C



COM Ports
Ports 1 x RS-485
Baud Rate 1200 to 115200 bps
Data Format N, 8, 1
Protocol DCON



Power
Consumption 1.3 W Max.



Mechanical
Dimensions (mm) 30 x 84 x 114 (W x L x H)



Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

I-87018ZW-G/S     CR  10-ch Thermocouple Input Module with High Overvoltage Protection (RoHS)
Includes DB-1820 Daughter Board
