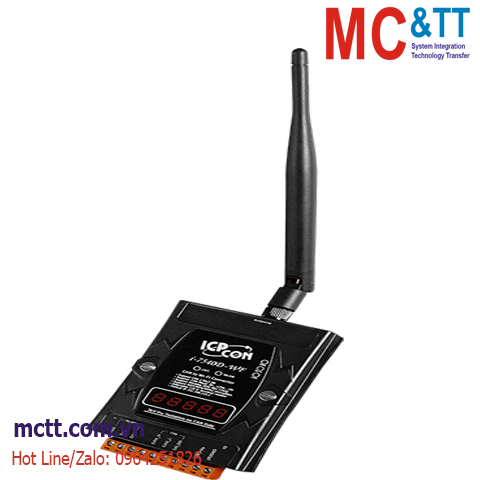

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ chuyển đổi CAN sang Ethernet Wi-Fi ICP DAS I-7540D-WF CR
Feature
Introduction
The I-7540D-WF supports the wireless transmission of CAN data between a CAN network and a WLAN network according to the 802.11b/g standard. It provides CAN to WLAN converter functionality together with wireless transparent transmission on the CAN network. The I-7540D-WF is highly suitable for connecting mobile (e.g., vehicles or machines) or stationary CAN networks and is often used in short ranges up to 100 m. Using an appropriately configured router, CAN data can be determined to pass or filter from the CAN networks to the Ethernet. The wireless connection that is established between two I-7540DWF units can be used instead of a cable, and enables the connection of CAN networks that would otherwise be difficult to link such as rotational machineries.
Application
Specifications
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x Wi-Fi 1 x CAN 1 x WLAN 1 x TCP connection |
| Wi-Fi | |
|---|---|
| Transmission Distance (LoS) | 100 m |
| Standard | IEEE 802.11b/g |
| RX Sensitivity | -87dBm @802.11b / -72dBm @802.11g |
| Output Power | 14dBm @802.11b / 12dBm @802.11g |
| Operation Mode | Infrastructure & Ad-hoc |
| Frequency | 2.412GHz ~ 2.484GHz |
| Encryption | WEP, WPA and WPA2 |
| Antenna | 5 dBi (Omni-Directional) |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (10-pin screw terminal block (TXD, RXD, GND)) |
| Baud Rate | 115200 |
| CAN | |
|---|---|
| Controller | CAN Controller inside |
| Ports | 1 |
| Baud Rate | 5 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Selectable 120Ω terminal resistor by jumper |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Filter | Yes |
| Pin Assignment | 10-pin screw terminal connecter |
| Data Flow | 700 fps(peak value, one-way) |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.5 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 76 x 117 x 37 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-7540D-WF CR | CAN to Wi-Fi Converter (RoHS) (Asia Only) |
