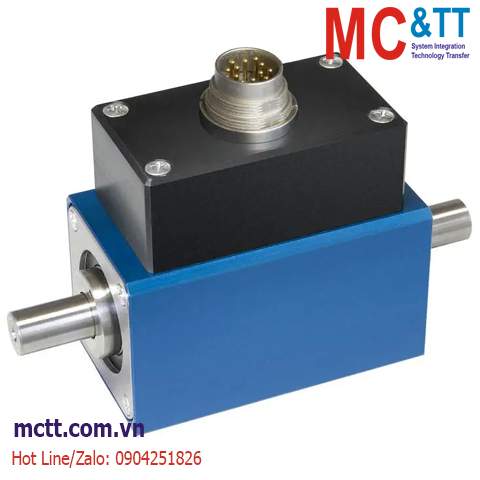

DR-2643, Rotary Torque Sensor
The DR-2643 torque sensor is a reliable and durable unit. Its very short axial length and high torsional stiffness allow for simple handling and simple assembly. There is virtually no influence of the bearing friction on the measuring signal.
Features:
DR-2643 - Specifications
| Type | Rotary |
| Full Scale | 0.1 Nm |
| 0.2 Nm | |
| 0.5 Nm | |
| 1 Nm | |
| 2 Nm | |
| 5 Nm | |
| 10 Nm | |
| 20 Nm | |
| 30 Nm | |
| 50 Nm | |
| 100 Nm | |
| 200 Nm | |
| 500 Nm | |
| 1000 Nm | |
| 2000 Nm | |
| 5000 Nm | |
| Max Speed | 12000 RPM |
| 15000 RPM | |
| 20000 RPM | |
| 30000 RPM | |
| Output | ±5 V DC |
| ±10 V DC | |
| Speed/Angle (TTL) | |
| Precision | ±0.10 % FS |
| Excitation | 12 V - 28 V DC |
| Drive Side | Round Shaft |
| Test Side | Round Shaft |
| IP Rating | IP50 |
| Min Temperature | 0 °C |
| Max Temperature | 60 °C |
Download
| Suitable Coupling (PDF Datasheet): | Stiff Sensor Assembly:
0.5..30 N·m Floating Sensor Assembly: |
|---|---|
| Suitable Connection Cable (PDF Datasheet): |
Connection cable, 3 m, with 12-pin female cable connector and free soldered ends |
| PDF Datasheet: | 080885f_DR-2643_en.pdf |
