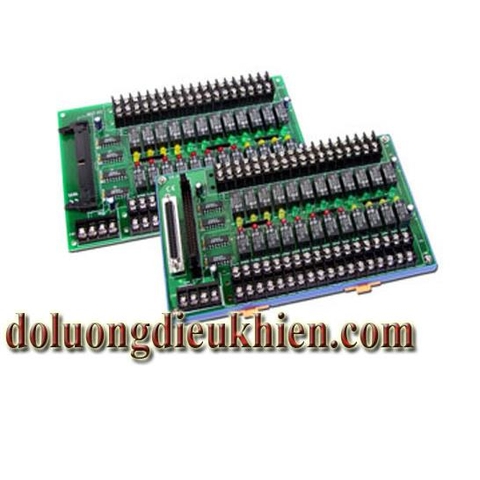

DB-24RD/12V 4-channel DIN-Rail Mounting Power Relay Module, 1 form C

DB-24RD/12V 4-channel DIN-Rail Mounting Power Relay Module, 1 form C

• FORM C RELAY
• Type : 1 form C
• Nominal load : 0.5 A /120 VAC , 1A /24 VDC
• Max. Switching power : 60VA,24W
• Max. Switching Voltage : 120VAC,60VDC
• Max. Switching Current : 1A
• Life Expectancy : Mechanical ( 2 x 107 ); Electrical ( 2 x 10 5)
• Release Time Value : Operate ( 6 ms )
• Control Logic : Input TTL high (+5V) , relay on
• Power Consumption : +12V @0.3A max ,+5V @0.18A max
• Dimension : 220mm X 132mm
• Operating Temperature : 0 -60°C
• Storage Temperature : -20~70°C
• Humidity : 5% to 90 % noncondensing
