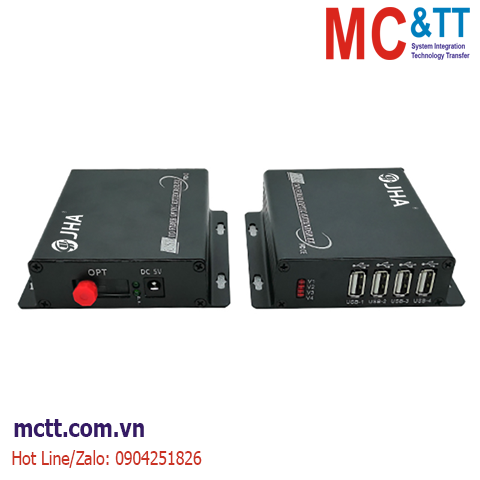

Bộ chuyển đổi 4 cổng USB2.0 sang Quang 4 Port USB2.0

Bộ chuyển đổi 4 cổng USB2.0 sang Quang 4 Port USB2.0

Short Description

The USB2.0 four-port optical fiber transmitter is composed of a transmitter and a receiver. The USB interface (USB2.0) of the host is extended to the far end through a single-mode single-mode or multi-mode optical fiber and extended to 4 USB ports.

Product Description

USB 2.0 Fiber Converter also named as USB2.0 To Fiber Optic Extender. The device consists of a transmitter and a receiver,which extends the host’s USB signal to the far end and expands to four USB ports through a single-mode or multi-mode fiber. The maximum transmission distance is 250 meters (single mode or multimode fiber). It supports USB 1.1 and 2.0 series high-speed cameras, hard drives, printers, scanners, audio devices, touch screens, game controllers and more. Products can be used in video conferencing, multimedia information release, government departments, medical systems, commercial displays, multimedia functions, security monitoring, utilities and other fields.

Features：

• USB fiber converter compatible with USB2.0 and USB1.1 protocol, support USB camera, printer, U disk, scanner, touch screen and other equipment.

• Automatically identify high-speed, (25Mbps ~ 480Mbps), full speed (500Kbps ~ 12Mbps), low speed (10Kbps ~ 1.5Mbps) USB devices.

• Fiber transmission distance of 250 meters (single mode or multimode fiber).

• The fiber extension to 4 USB ports,

• Single-core fiber transmission, no need to drive, compatible with any system, plug and play.

Thông số kỹ thuật

Thông tin đặt hàng

Tài liệu

Datasheet
